Limitations
- This example uses some HTML and CSS that do not render in PDFs or PNGs. Only use this if you don’t need it delivered.
- This example requires all team members have the same goal value. You could adjust the math if you need to do varying target values.
- This version adds a crown to any team member that exceeds the target.
Setup

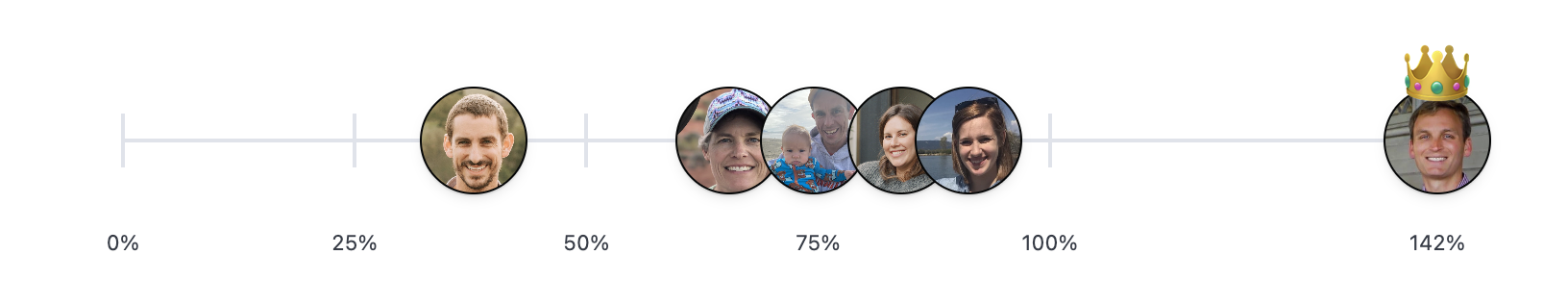

These charts use the Mustache iterator syntax to draw a circle on the progress tracker for each row in the results. The following table explains each field used in the example, including the calculation formulas.

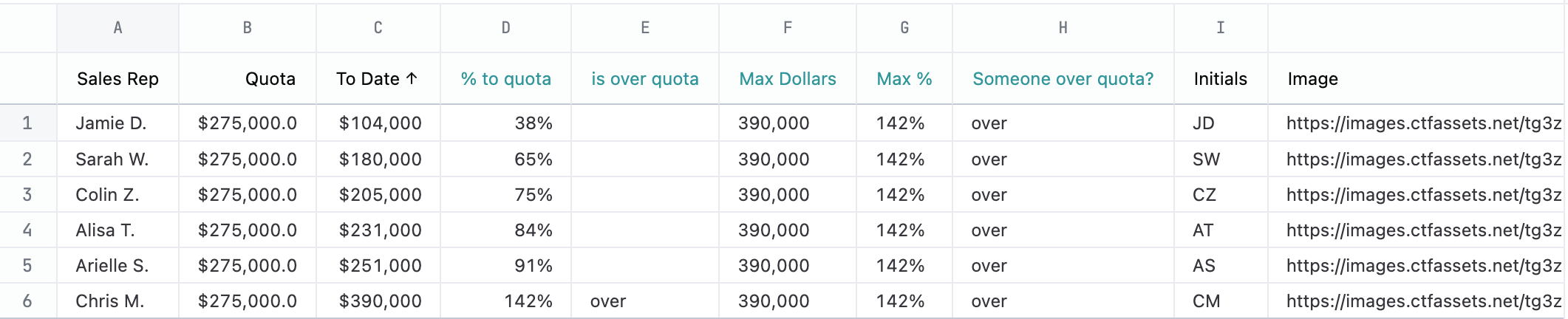

| Col | Name | Description or formula | Notes |
|---|---|---|---|
| A | Sales Rep | Name used in tooltip | |
| B | Quota | target value | Must be the same for each individual |
| C | To date | current value | must be > 0 but can exceed target |
| D | % to quota | =C1 / B1 | % to goal - can be > 100% |
| E | is over quota | =IF(D1 >= 1, “over”, "") | used to add a crown if user is over quota |
| F | Max dollars | =MAX(MAX(C:C), B1) | needed for calculating positions if anybody is over quota |
| G | Max % | =MAX(MAX(D:D), 1) | used for presentation in the tooltip |
| H | Someone over quota | =IF(G1 > 1, “over”, "") | flag to change range of tracker if anybody is over quota |
| I | Initials | Not used in this example but could be used instead of picture | |
| J | Image | used as background of the circle |
Example code
<style>
article.race-tracker {
--padding-inline: 44px;
--track-width: 2px;
--track-color: var(--color-border2);
--rep-diam: 56px;
--rep-half: calc(var(--rep-diam) / 2);
--rep-quarter: calc(var(--rep-half) / 2);
--track-height: calc(2.25 * var(--rep-diam));
--zero: calc(var(--rep-diam) / 2); /* 1/2 diam */
--quota: {{result.0.reps_to_quota.quota.raw}};
--max: {{result.0.calc_2.raw}};
width: 100%;
padding: 0 var(--padding-inline);
position: relative;
}
ol.track {
list-style: none;
margin: 0;
display: flex;
width: 100%;
height: var(--track-height);
position: relative;
& li.track-line {
position: absolute;
background: var(--track-color);
height: var(--track-width);
width: 100%;
top: calc(50% - var(--track-width) / 2);
left: 0;
z-index: 0;
}
& li.tick {
--marker-width: 5ch;
--half: calc(var(--marker-width) / 2);
--mark: attr(data-value type(<number>));
--quota-x-mark: calc(var(--quota) * var(--mark));
--position: calc(var(--quota-x-mark) / var(--max) * 100%);
position: absolute;
width: 5ch;
display: flex;
flex-direction: column;
justify-content: flex-end;
align-items: center;
height: 100%;
top: 0;
left: calc(var(--position) - var(--half));
font-size: var(--font-xxs);
& span.line {
width: var(--track-width);
background: var(--track-color);
height: var(--rep-half);
display: inline-blcok;
position: absolute;
top: calc(var(--rep-half)* 1.75);
}
}
& li.tick.alt-max {
visibility: hidden;
}
&.over li.tick.alt-max {
visibility: visible;
}
}
ol.tracker {
list-style: none;
margin: 0;
display: flex;
width: calc(100% - 2 * var(--padding-inline));
height: var(--rep-diam);
position: absolute;
top: calc(var(--rep-half) * 1.25);
left: var(--padding-inline);
& li.rep {
--todate: attr(data-todate type(<number>));
--position: calc(var(--todate) / var(--max) * 100%);
width: var(--rep-diam);
height: var(--rep-diam);
display: flex;
align-items: center;
justify-content: center;
border-radius: 500px;
border: 1px solid var(--color-text4);
box-shadow: var(--elevation1);
position: absolute;
left: calc(var(--position) - var(--zero));
background-color: var(--color-text1);
background-size: var(--rep-diam);
& .crown {
position: absolute;
top: calc(var(--rep-half) * -0.75);
font-size: var(--font-xxl);
display: none;
}
& ul.info-bits {
position: absolute;
bottom: 0;
left: calc(-60px + var(--size4));
top: -60px;
list-style: none;
margin: 0;
padding: var(--size1) var(--size2);
width: 120px;
border-radius: 3px;
height: min-content;
background: var(--color-surface-invert);
color: var(--color-text-inverse);
box-shadow: var(--elevation3);
display: none;
& li {
white-space: nowrap;
font-size: var(--font-xxs);
line-height: var(--line-height-xxs);
}
}
}
& li.rep:hover {
box-shadow: var(--elevation3);
z-index: 2;
& ul.info-bits {
display: block;
}
}
& li.rep.over {
.crown {
display: block;
}
}
}
</style>
<article class="race-tracker">
<ol class="track {{result.0.calc_4.value_static}}">
<li class="track-line"></li>
<li class="tick t0" data-value="0"><span class="line"></span><span class="value">0%</span></li>
<li class="tick t25" data-value="0.25"><span class="line"></span><span class="value">25%</span></li>
<li class="tick t50" data-value="0.5"><span class="line"></span><span class="value">50%</span></li>
<li class="tick t75" data-value="0.75"><span class="line"></span><span class="value">75%</span></li>
<li class="tick t100" data-value="1"><span class="line"></span><span class="value">100%</span></li>
<li class="tick alt-max" data-value="{{result._first.calc_3.raw}}"><span class="line"></span><span class="value">{{result._first.calc_3.value_static}}</span></li>
</ol>
<ol class="tracker">
{{#result}}
<li class="rep {{calc_5.raw}}" data-todate="{{reps_to_quota.to_date.raw}}" style="background-image: url('{{reps_to_quota.image.raw}}')"><span class="crown">👑</span>
<ul class="info-bits">
<li>{{reps_to_quota.sales_rep.value_static}}</li>
<li>{{reps_to_quota.to_date.value_static}} to date</li>
<li>{{calc_1.value_static}} to quota</li>
</ul>
</li>
{{/result}}
</ol>
</article>
