Repeating square fill charts

Squares will automatically adjust size and wrap to the next line.

Setup

These charts use the Mustache iterator syntax to draw a shape for each row in the results. Your query should have a dimension that determines the number of pies and their labels and the values for the numerator and denominator to calculate the percentage fill. Then you’ll need to add a few calculations. The following table explains each field used in the example, including the calculation formulas.

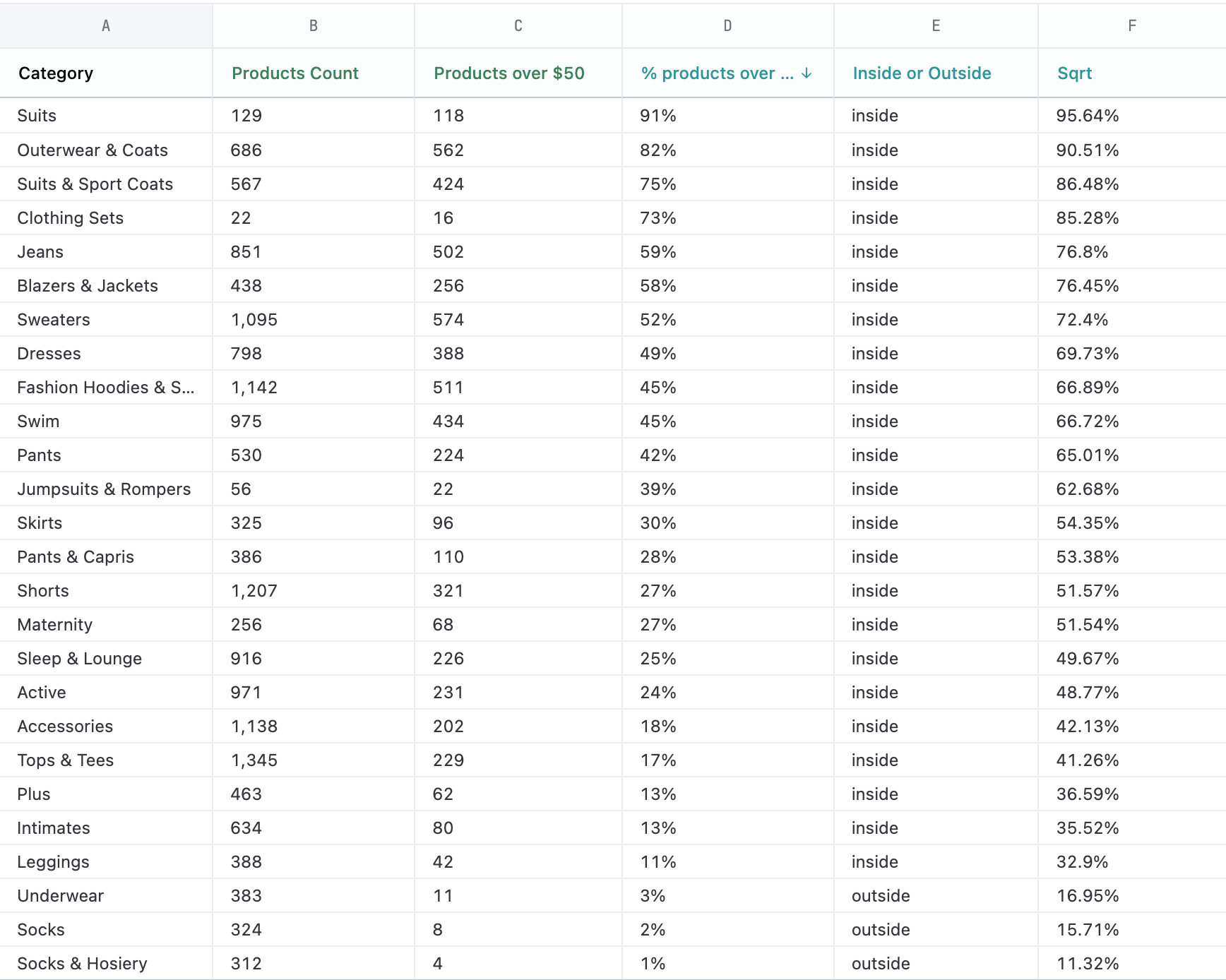

Col	Name	Description or formula	Purpose
A	Category	query field	determines number of squares to make and their labels
B	Products Count	query field	denominator for % calculation
C	Products over $50	query field	numerator for % calculation
D	% over $50 (`calc_1`)	=C1 / B1	calculation for filling square, label
E	inside or outside (`calc_3`)	=IF(D1 < 0.1, “outside”, “inside”)	calculation to help position and color the label
F	square root (`calc_4`)	=SQRT(D1)	calculation to get the length of the side of the square

Example code

<style>
  h3 {
    margin-top: 0;
  }
  .percent-fill-boxes {
    & ul {
      list-style: none;
      margin: 0;
      padding: 0;
      display: grid;
      grid-template-columns: repeat(auto-fit, minmax(100px, 1fr));
      gap: var(--size4);
    }
    & li {
      list-style: none;
      margin: 0;
      padding: 0;
    }
    p {
      margin: 0;
      padding: 0;
    }
    & .big-box {
      width: 100%;
      aspect-ratio: 1 / 1;
      background-color: var(--color-border2);
      position: relative;
      display: flex;
      flex-direction: column-reverse;
    }
    & .little-box {
      aspect-ratio: 1 / 1;
      display: block;
      background-color: var(--color-info);
      position: relative;

      & span {
        display: block;
        font-size: var(--font-xxs);
        font-variant-numeric: tabular-nums;
        width: 4ch;
        padding-right: 2px;
        line-height: var(--line-height-xxs);
        position: absolute;

        &.inside {
          text-align: right;
          top: 0;
          right: 0;
          color: var(--color-text-inverse);
        }

        &.outside {
          top: calc(-1 * var(--line-height-xxs));
          right: -4ch;
          text-align: left;
          color: var(--color-text2)
;        }
      }
    }
    & p.label {
      text-align: left;
    }
  }
</style>

<article class="percent-fill-boxes">
  <h3>% of products over $50</h3>
  <ul>
  {{#result}}
    <li>
      <div class="big-box"">
        <p class="little-box" style="width: {{calc_4.value}}">
          <span class="{{calc_3.value}}">{{calc_1.value}}</span>
        </p>
      </div>
      <p class="label">{{products.category.value}}</p>
    </li>
  {{/result}}

  </ul>
</article>
