drill_fields - Dimensions

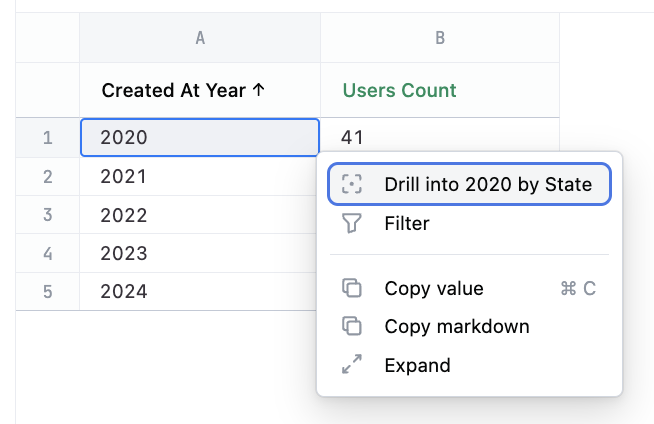

Drill fields allow for hierarchical drilling inside a row of the result set. Dimensional drill retains the table structure, but adds the dimensions as filters and swaps the dimensions for the drill fields.

Setting this parameter with an empty value (drill_fields: []) removes the drill from the dimension. You can also remove drilling in workbooks by hovering over a field in the field picker, clicking , and selecting Edit.

Syntax

<dimension_name>:
  drill_fields: [<field_1>, <field_2>, ...]

Properties

object

The name of the dimension. Dimension names must:

Be unique within the view
Start with a letter
Contain only alphanumeric characters and underscores

Hide dimension_name properties

array

An array of field names that will be displayed when drilling into this dimension. An empty value ([]) removes the drill from the dimension.

Examples

Geographic drill-down

country:
  drill_fields: [state]

Timeframe drill with metadata

created_at:
  timeframe_metadata:
    year:
      drill_fields: [state]
      group_label: Created At

Remove drill capability

category:
  drill_fields: []
