Instead of creating and building a new dashboard from scratch, you can use Omni’s APIs to make the changes programmatically.

​
Requirements

To follow the steps in this guide, you’ll need:
  • Some familiarity with APIs. This guide uses the command line to make API requests, which requires some technical know-how.
  • Permissions in Omni that allow you to:
    • Create an API key (Settings > API keys)
    • Access the model IDE
  • An Omni dashboard you want to migrate.

​
Steps

1

Retrieve the dashboard ID

The first step is to retrieve the dashboard’s unique ID. You can do this by:
  • Using the dashboard’s URL. The string after /dashboards is the dashboard’s ID; for example: https://blobsrus.omniapp.co/dashboards/1c5e3040

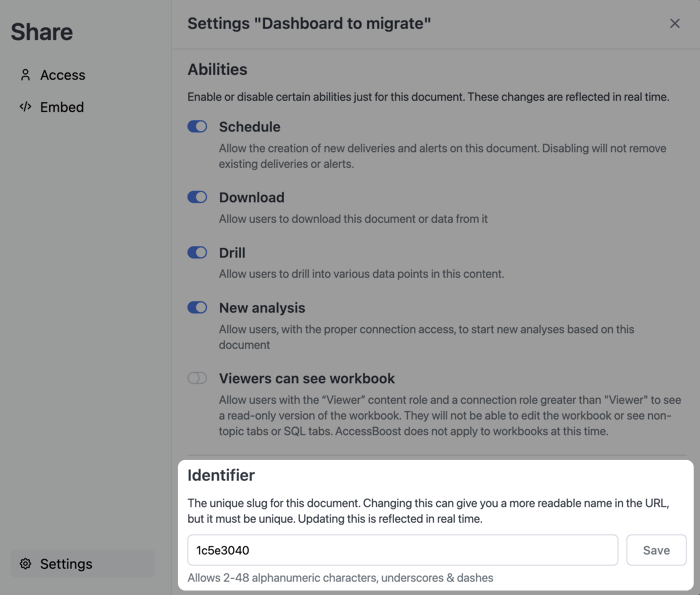

  • Opening the dashboard settings. Navigate to File > Document settings. The Identifier field contains the dashboard ID:
2

Export the dashboard

Next, you’ll export the dashboard you want to migrate. Use the following as a template for your GET request:
Template for GET /api/unstable/documents/:dashboardId/export
curl -L 'https://<YOUR_OMNI_ORG>.omniapp.co/api/unstable/documents/<DASHBOARD_ID>/export' \
-H 'Authorization: Bearer <YOUR_API_TOKEN>' \
-H 'Content-Type: application/json'
For example, the following request is for the blobsrus organization and exports the 1c5e3040 dashboard:
GET /api/unstable/documents/:dashboardId/export
curl -L 'https://blobsrus.omniapp.co/api/unstable/documents/1c5e3040/export' \
-H 'Authorization: Bearer <TOKEN>' \
-H 'Content-Type: application/json'
A successful request will return a JSON object with the following structure:
Successful response
{
  "dashboard": {...},           // Contains details about the dashboard; truncated for simplicity
  "document": {...},
  "exportVersion": "0.1",
  "workbookModel": {...}
}
Copy the response into a text editor, as you’ll be editing it in the next step.
3

Retrieve the new model ID

The next step is to retrieve the ID for model that the new dashboard should be built on.
  1. In Omni, navigate to Settings > Model and click the model to open it in the IDE.
  2. Locate the string between /models/ and /ide in the URL:
    https://blobsrus.omniapp.co/models/d37d0698-4558-41aa-b7f7-66ff85e89e9d/ide
    In this example, the model ID is d37d0698-4558-41aa-b7f7-66ff85e89e9d.
  3. Add following baseModelId property to the response body from step 2 of this guide. Replace the value with the ID of the new model:
    "baseModelId": "<NEW_MODEL_ID>",
    The updated JSON should have the following structure:
    Example model ID
    {
  "baseModelId": "d37d0698-4558-41aa-b7f7-66ff85e89e9d",
  "dashboard": {...},
  "document": {...},
  "exportVersion": "0.1",
  "workbookModel": {...}
}
4

Import the new dashboard

The last step is to import the dashboard. Start by using the following template to set up the API request:
Template for POST /api/unstable/documents/import
curl -L -X POST 'https://<YOUR_OMNI_ORG>.omniapp.co/api/unstable/documents/import' \
-H 'Authorization: Bearer <YOUR_API_TOKEN>' \
-H 'Content-Type: application/json' \
-d '{
   <UPDATED_JSON_FROM_STEP_3>
}'
Replace <UPDATED_JSON_FROM_STEP_3> with the modified JSON from the previous step. Your request should look something like this:
POST /api/unstable/documents/import
curl -L -X POST 'https://blobsrus.omniapp.co/api/unstable/documents/import' \
-H 'Authorization: Bearer <TOKEN>' \
-H 'Content-Type: application/json' \
-d '{
  "baseModelId": "d37d0698-4558-41aa-b7f7-66ff85e89e9d",
  "dashboard": {...},
  "document": {...},
  "exportVersion": "0.1",
  "workbookModel": {...}
}'
A successful request will return a JSON object similar to the following:
Successful response
{
  "dashboard": {
     "dashboardId":"31b55e13-abd8-4ba8-b78c-c5afb0e4ed43"
  },
  "miniUuidMap": {
     "nY8mm3PM":"c_afY5V5"
  },
  "workbook": {...}       // Details about the workbook; truncated for simplicity
}

​
What’s next?

At this point, you should be able to access the new dashboard. Further updates may be required, such as updating the corresponding model details to align topics, custom fields, and so on. To learn more about the content migration APIs, refer to the API references:
