Team progress tracker

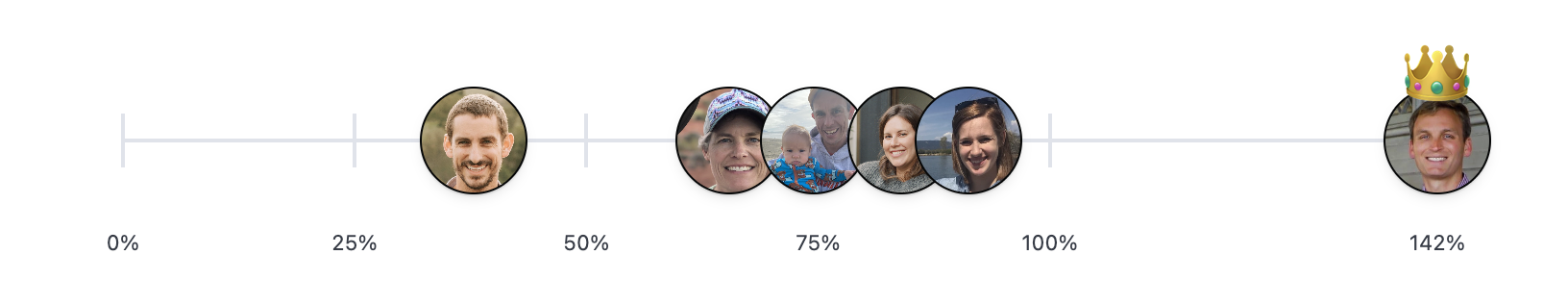

The code for this example can be used in the Markdown visualization to create a progress chart for multiple individuals on the same timeline. If any individuals exceed 100% of their goal, the progress line will extend to the highest value.

A few caveats:

It uses some HTML and CSS that do not render in PDFs or PNGs. Only use this if you don't need it delivered.
It currently requires all team members have the same goal value. You could adjust the math if you need to do varying target values.
This version adds a crown to any team member that exceeds the target.

Setup

These charts use the Mustache iterator syntax to draw a circle on the progress tracker for each row in the results.

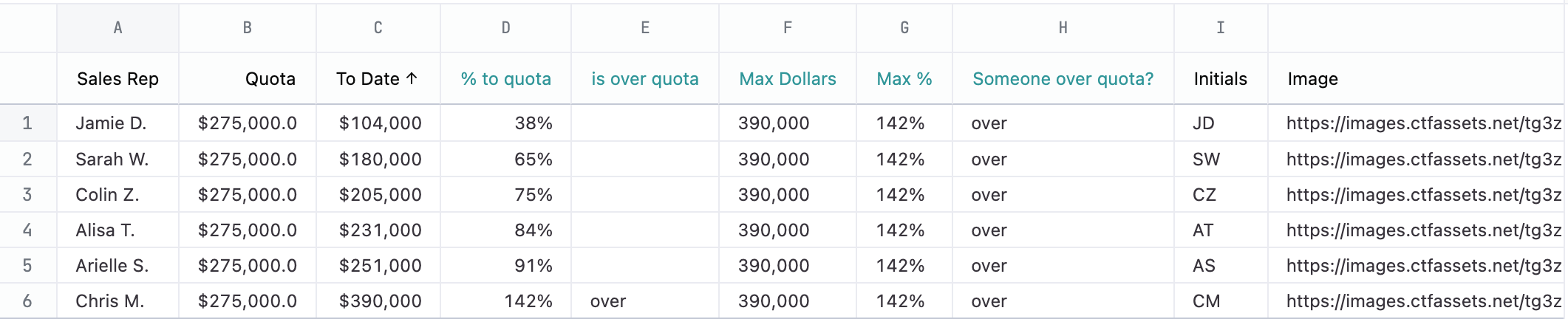

The following table explains each field used in the example, including the calculation formulas.

Col	Name	Description or formula	Notes
A	Sales Rep		Name used in tooltip
B	Quota	target value	Must be the same for each individual
C	To date	current value	must be > 0 but can exceed target
D	% to quota	=C1 / B1	% to goal - can be > 100%
E	is over quota	=IF(D1 >= 1, "over", "")	used to add a crown if user is over quota
F	Max dollars	=MAX(MAX(C:C), B1)	needed for calculating positions if anybody is over quota
G	Max %	=MAX(MAX(D:D), 1)	used for presentation in the tooltip
H	Someone over quota	=IF(G1 > 1, "over", "")	flag to change range of tracker if anybody is over quota
I	Initials		Not used in this example but could be used instead of picture
J	Image		used as background of the circle

Example code

<style>
article.race-tracker {
  --padding-inline: 44px;
  --track-width: 2px;
  --track-color: var(--color-border2);
  --rep-diam: 56px;
  --rep-half: calc(var(--rep-diam) / 2);
  --rep-quarter: calc(var(--rep-half) / 2);
  --track-height: calc(2.25 * var(--rep-diam));
  --zero: calc(var(--rep-diam) / 2); /* 1/2 diam */
  --quota: {{result.0.reps_to_quota.quota.raw}};
  --max: {{result.0.calc_2.raw}};

  width: 100%;
  padding: 0 var(--padding-inline);
  position: relative;
}
ol.track {
  list-style: none;
  margin: 0;
  display: flex;
  width: 100%;
  height: var(--track-height);
  position: relative;

  & li.track-line {
    position: absolute;
    background: var(--track-color);
    height: var(--track-width);
    width: 100%;
    top: calc(50% - var(--track-width) / 2);
    left: 0;
    z-index: 0;
  }

  & li.tick {
    --marker-width: 5ch;
    --half: calc(var(--marker-width) / 2);
    --mark: attr(data-value type(<number>));
    --quota-x-mark: calc(var(--quota) * var(--mark));
    --position: calc(var(--quota-x-mark) / var(--max) * 100%);

    position: absolute;
    width: 5ch;
    display: flex;
    flex-direction: column;
    justify-content: flex-end;
    align-items: center;
    height: 100%;
    top: 0;
    left: calc(var(--position) - var(--half));
    font-size: var(--font-xxs);

    & span.line {
      width: var(--track-width);
      background: var(--track-color);
      height: var(--rep-half);
      display: inline-blcok;
      position: absolute;
      top: calc(var(--rep-half)* 1.75);
    }
  }
  & li.tick.alt-max {
    visibility: hidden;
  }

  &.over li.tick.alt-max {
    visibility: visible;
  }
}
ol.tracker {
  list-style: none;
  margin: 0;
  display: flex;
  width: calc(100% - 2 * var(--padding-inline));
  height: var(--rep-diam);
  position: absolute;
  top: calc(var(--rep-half) * 1.25);
  left: var(--padding-inline);

  & li.rep {
    --todate: attr(data-todate type(<number>));
    --position: calc(var(--todate) / var(--max) * 100%);
    width: var(--rep-diam);
    height: var(--rep-diam);
    display: flex;
    align-items: center;
    justify-content: center;
    border-radius: 500px;
    border: 1px solid var(--color-text4);
    box-shadow: var(--elevation1);
    position: absolute;
    left: calc(var(--position) - var(--zero));
    background-color: var(--color-text1);
    background-size: var(--rep-diam);

    & .crown {
      position: absolute;
      top: calc(var(--rep-half) * -0.75);
      font-size: var(--font-xxl);
      display: none;
    }

    & ul.info-bits {
      position: absolute;
      bottom: 0;
      left: calc(-60px + var(--size4));
      top: -60px;
      list-style: none;
      margin: 0;
      padding: var(--size1) var(--size2);
      width: 120px;
      border-radius: 3px;
      height: min-content;
      background: var(--color-surface-invert);
      color: var(--color-text-inverse);
      box-shadow: var(--elevation3);
      display: none;

      & li {
        white-space: nowrap;
        font-size: var(--font-xxs);
        line-height: var(--line-height-xxs);
      }
    }
  }
  & li.rep:hover {
    box-shadow: var(--elevation3);
    z-index: 2;

    & ul.info-bits {
      display: block;
    }
  }
  & li.rep.over {
    .crown {
      display: block;
    }
  }
}
</style>
<article class="race-tracker">
<ol class="track {{result.0.calc_4.value_static}}">
  <li class="track-line"></li>
  <li class="tick t0" data-value="0"><span class="line"></span><span class="value">0%</span></li>
  <li class="tick t25" data-value="0.25"><span class="line"></span><span class="value">25%</span></li>
  <li class="tick t50" data-value="0.5"><span class="line"></span><span class="value">50%</span></li>
  <li class="tick t75" data-value="0.75"><span class="line"></span><span class="value">75%</span></li>
  <li class="tick t100" data-value="1"><span class="line"></span><span class="value">100%</span></li>
  <li class="tick alt-max" data-value="{{result._first.calc_3.raw}}"><span class="line"></span><span class="value">{{result._first.calc_3.value_static}}</span></li>
</ol>
<ol class="tracker">
{{#result}}
<li class="rep {{calc_5.raw}}" data-todate="{{reps_to_quota.to_date.raw}}" style="background-image: url('{{reps_to_quota.image.raw}}')"><span class="crown">👑</span>
<ul class="info-bits">
  <li>{{reps_to_quota.sales_rep.value_static}}</li>
  <li>{{reps_to_quota.to_date.value_static}} to date</li>
  <li>{{calc_1.value_static}} to quota</li>
</ul>
</li>
{{/result}}
</ol>
</article>
