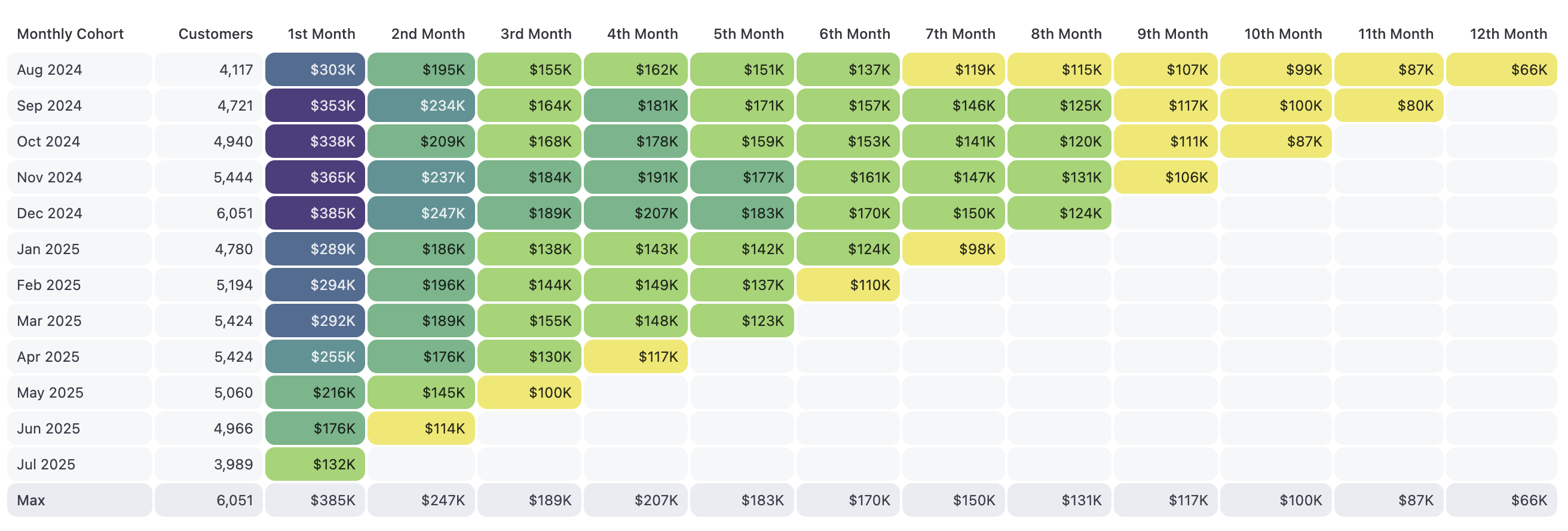

Cohort table

The code for this example can be used in the Markdown visualization to create a more condensed and styled cohort table for a year's worth of monthly cohorts. The table includes the metric for each cohort over time as well as the size of each cohort.

Setup

To build this chart you will need to structure your query with the cohorts as the rows and the time passed as the pivot. A calculation is used to pull the cohort size out of the pivot. Additional calculations are necessary to figure out how to color each cell. We'll also need the column totals enabled.

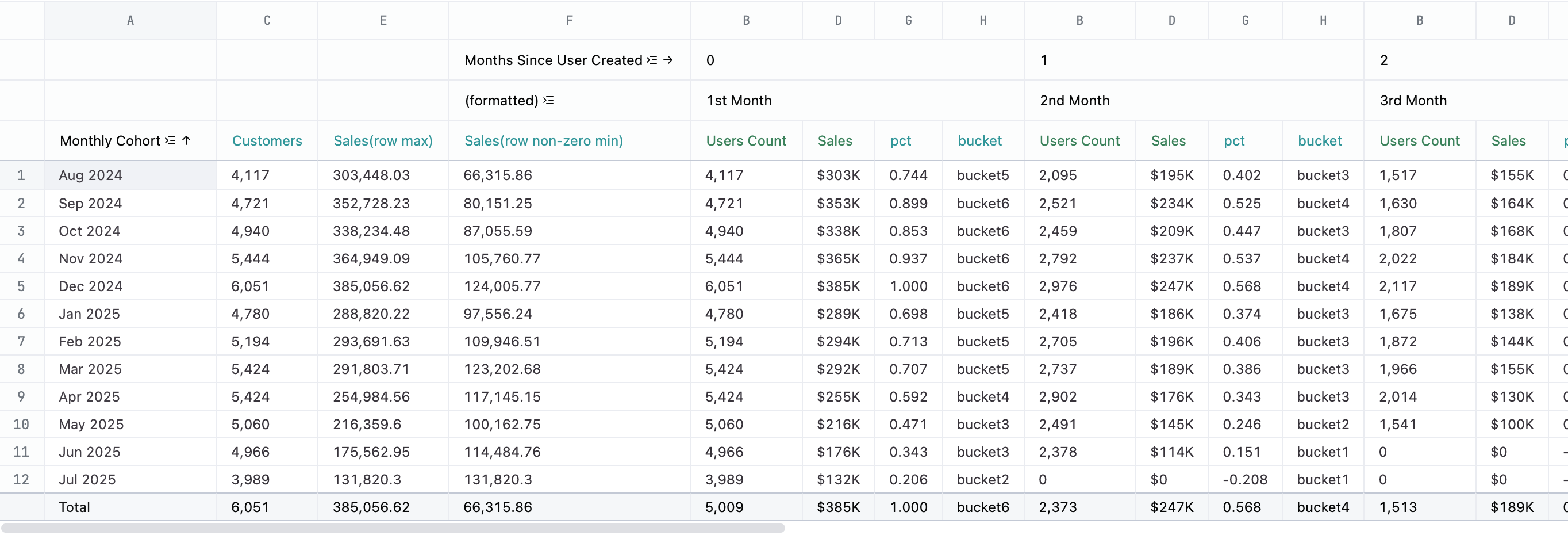

The following table explains each field used in the example, including the calculation formulas.

Col	Name	Description or formula	Purpose
A	Monthly cohort	query field	A row for each cohort, sorted with the oldest at the top
B	Users Count	query field	Count of users in the cohort (inside pivot)
C	Customers	=PIVOTOFFSET(B1, 0, 0)	First column of users count is the size of the cohort
D	Sales	query field	Total sales for the cohort (inside pivot)
E	Sales (row max)	=MAX(PIVOTROW(D1))	Maximum sales value for the row - set total calculation to `maximum`
F	Sales (row non-zero min)	=IFERROR(MINIFS(PIVOTROW(D1), PIVOTROW(D1), ">0"), 0)	Minimum non-zero value for the row. If row is all zeros, will set to 0. Set total calculation to `minimum`
G	pct	=(D1 - F_TOTAL) / (E_TOTAL - F_TOTAL)	how close to the max value is the current cell - will be a value between 0 and 1 where 0 is the overall min sales value, 1 is the overall max value
H	bucket	=IF(G1 <= 0.167, "bucket1", IF(G1 <= 0.333, "bucket2", IF(G1 <= 0.5, "bucket3", IF(G1 <= 0.667, "bucket4", IF(G1 <= 0.833, "bucket5", "bucket6")))))	string to identify bin for coloring

Don't forget to enable the column totals and adjust the total calculation as follows:

column D - Sales - to be maximum
column E - Sales (row max) - to be maximum
column F - Sales (row non-zero min) - to be minimum

Example code

<style>
  .cohort-table {
    --header-color: var(--color-foreground2);
    --total-color: var(--color-border1);
    --empty-color: var(--color-foreground2);
    --cell-radius: 8px;
    border-spacing: 2px;
    width: 100%;

    & th { text-align: right; padding: 4px 8px; font-weight: 500;}
    & th.left-align { text-align: left; }
    & td { text-align: right; padding: 4px 8px; }

    & tbody th {
      background: var(--header-color);
      border-radius: var(--cell-radius);
      font-weight: normal;
    }
    & tfoot th {
      background: var(--total-color);
      border-radius: var(--cell-radius);
      font-weight: 500;
    }
    & tfoot td {
      background: var(--total-color);
      border-radius: var(--cell-radius);
    }
    & tbody td {
      background: transparent;
      border-radius: var(--cell-radius);
    }
    & tbody td.bucket1 { background: #F0E654ee; color: hsl(219deg 3% 3% / 85%); }
    & tbody td.bucket2 { background: #94D161ee; color: hsl(219deg 3% 3% / 85%); }
    & tbody td.bucket3 { background: #5DB27Fee; color: hsl(219deg 3% 3% / 85%); }
    & tbody td.bucket4 { background: #468C8Dee; color: hsl(180deg 0% 100% / 85%);; }
    & tbody td.bucket5 { background: #40628Aee; color: hsl(180deg 0% 100% / 85%); }
    & tbody td.bucket6 { background: #423076ee; color: hsl(180deg 0% 100% / 85%); ; }
    }
    /* blank out bottom right */
    & tbody {
      & tr:nth-of-type(2) td:nth-child(n+14) { color: var(--empty-color); background: var(--empty-color); }
      & tr:nth-of-type(3) td:nth-child(n+13) { color: var(--empty-color); background: var(--empty-color); }
      & tr:nth-of-type(4) td:nth-child(n+12) { color: var(--empty-color); background: var(--empty-color); }
      & tr:nth-of-type(5) td:nth-child(n+11) { color: var(--empty-color); background: var(--empty-color); }
      & tr:nth-of-type(6) td:nth-child(n+10) { color: var(--empty-color); background: var(--empty-color); }
      & tr:nth-of-type(7) td:nth-child(n+9) { color: var(--empty-color); background: var(--empty-color); }
      & tr:nth-of-type(8) td:nth-child(n+8) { color: var(--empty-color); background: var(--empty-color); }
      & tr:nth-of-type(9) td:nth-child(n+7) { color: var(--empty-color); background: var(--empty-color); }
      & tr:nth-of-type(10) td:nth-child(n+6) { color: var(--empty-color); background: var(--empty-color); }
      & tr:nth-of-type(11) td:nth-child(n+5) { color: var(--empty-color); background: var(--empty-color); }
      & tr:nth-of-type(12) td:nth-child(n+4) { color: var(--empty-color); background: var(--empty-color); }
    }
  }
</style>
<table class="cohort-table">
  <thead>
    <tr>
      <th class="left-align">Monthly Cohort</th>
      <th>Customers</th>
      <th>1st Month</th>
      <th>2nd Month</th>
      <th>3rd Month</th>
      <th>4th Month</th>
      <th>5th Month</th>
      <th>6th Month</th>
      <th>7th Month</th>
      <th>8th Month</th>
      <th>9th Month</th>
      <th>10th Month</th>
      <th>11th Month</th>
      <th>12th Month</th>
    </tr>
  </thead>
  <tbody>
    {{#result}}
    <tr>
      <th class="left-align">{{ecomm__users.created_at[month].value}}</th>
      <th>{{calc_1.value_static}}</th>
      <td class="{{0.1st Month.calc_5.raw}}">{{0.1st Month.ecomm__order_items.sale_price_sum.value}}</td>
      <td class="{{1.2nd Month.calc_5.raw}}">{{1.2nd Month.ecomm__order_items.sale_price_sum.value}}</td>
      <td class="{{2.3rd Month.calc_5.raw}}">{{2.3rd Month.ecomm__order_items.sale_price_sum.value}}</td>
      <td class="{{3.4th Month.calc_5.raw}}">{{3.4th Month.ecomm__order_items.sale_price_sum.value}}</td>
      <td class="{{4.5th Month.calc_5.raw}}">{{4.5th Month.ecomm__order_items.sale_price_sum.value}}</td>
      <td class="{{5.6th Month.calc_5.raw}}">{{5.6th Month.ecomm__order_items.sale_price_sum.value}}</td>
      <td class="{{6.7th Month.calc_5.raw}}">{{6.7th Month.ecomm__order_items.sale_price_sum.value}}</td>
      <td class="{{7.8th Month.calc_5.raw}}">{{7.8th Month.ecomm__order_items.sale_price_sum.value}}</td>
      <td class="{{8.9th Month.calc_5.raw}}">{{8.9th Month.ecomm__order_items.sale_price_sum.value}}</td>
      <td class="{{9.10th Month.calc_5.raw}}">{{9.10th Month.ecomm__order_items.sale_price_sum.value}}</td>
      <td class="{{10.11th Month.calc_5.raw}}">{{10.11th Month.ecomm__order_items.sale_price_sum.value}}</td>
      <td class="{{11.12th Month.calc_5.raw}}">{{11.12th Month.ecomm__order_items.sale_price_sum.value}}</td>
    </tr>
    {{/result}}
  </tbody>
  <tfoot>
    <tr>
      <th class="left-align">Max</th>
      <td>{{result._totals.0.calc_1.value_static}}</td>
      <td>{{result._totals.0.0.1st Month.ecomm__order_items.sale_price_sum.value_static}}</td>
      <td>{{result._totals.0.1.2nd Month.ecomm__order_items.sale_price_sum.value_static}}</td>
      <td>{{result._totals.0.2.3rd Month.ecomm__order_items.sale_price_sum.value_static}}</td>
      <td>{{result._totals.0.3.4th Month.ecomm__order_items.sale_price_sum.value_static}}</td>
      <td>{{result._totals.0.4.5th Month.ecomm__order_items.sale_price_sum.value_static}}</td>
      <td>{{result._totals.0.5.6th Month.ecomm__order_items.sale_price_sum.value_static}}</td>
      <td>{{result._totals.0.6.7th Month.ecomm__order_items.sale_price_sum.value_static}}</td>
      <td>{{result._totals.0.7.8th Month.ecomm__order_items.sale_price_sum.value_static}}</td>
      <td>{{result._totals.0.8.9th Month.ecomm__order_items.sale_price_sum.value_static}}</td>
      <td>{{result._totals.0.9.10th Month.ecomm__order_items.sale_price_sum.value_static}}</td>
      <td>{{result._totals.0.10.11th Month.ecomm__order_items.sale_price_sum.value_static}}</td>
      <td>{{result._totals.0.11.12th Month.ecomm__order_items.sale_price_sum.value_static}}</td>
    </tr>
  </tfoot>
</table>
