Uptime heatmaps

The code for these example can be used in the Markdown visualization to heatmap that colors each time slot based on a percentage value. Typically used to show the reliability of a service over time, these can be configured for different timeframes or coloring thresholds.

Red/green uptime heatmap

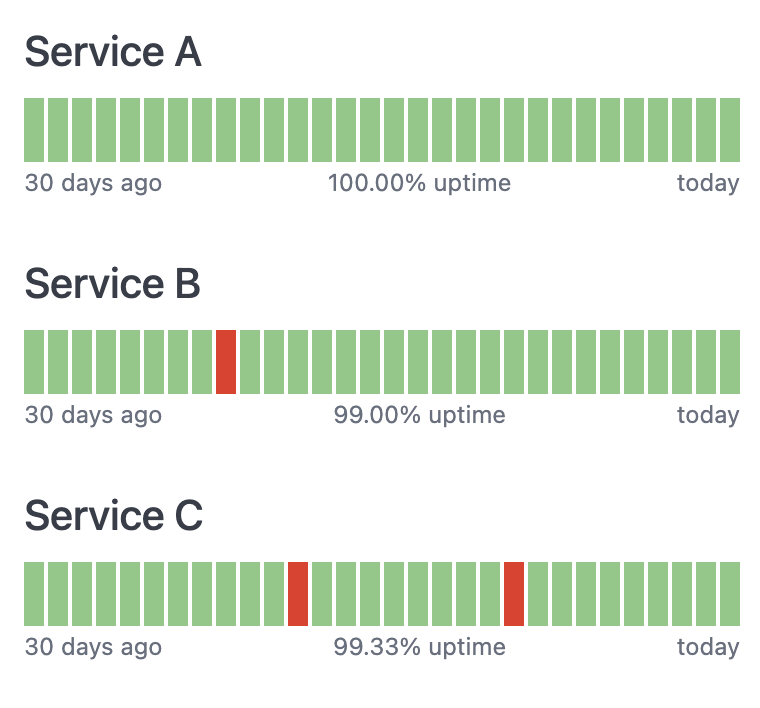

This example shows the last 30 days of data, coloring any day red if the service level percentage is anything but 100%.

Setup

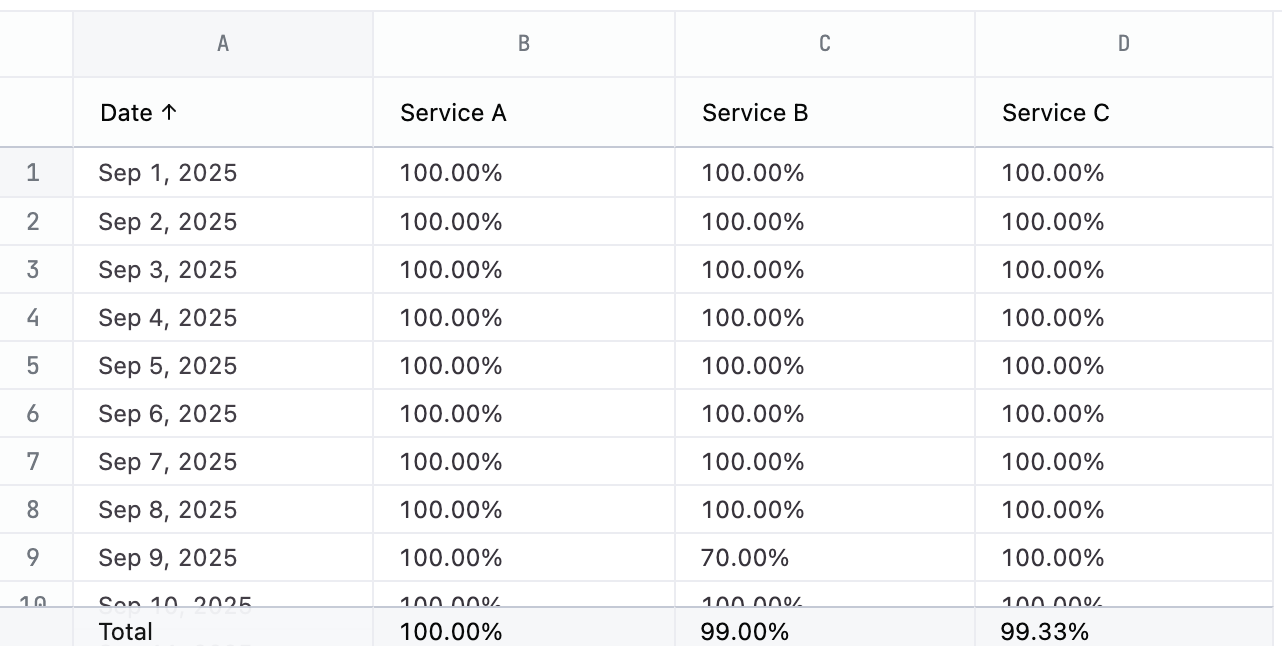

This chart has a very simple structure - the time slot and a % value for each chart you want to make. Add column totals to the query and change the total calculation to "average" to add the average uptime below each chart.

Example code

View example code

<style>
  h3:first-of-type { margin-top: 0; }
  h3 { margin-bottom: var(--size2); }
  ul.grids {
    display: grid;
    list-style: none;
    margin: 0;
    padding: 0;
    grid-template-columns: repeat(30, 1fr);
    gap: 2px;

    & li {
      font-size: 8px;
      background: #E93323;
      display: block;
      width: 100%;
      height: 32px;
    }

    & li.uptime-1 {
      background: #84C982;
    }
  }

  ul.labels {
    display: flex;
    flex-direction: row;
    list-style: none;
    justify-content: space-between;
    padding: 0;
    margin: 0;
    font-size: var(--font-xs);
    color: var(--color-text2);
  }
</style>
<h3>Service A</h3>
<ul class="grids">
{{#result}}
<li class="uptime-{{uptime_data.service_a.raw}}">&nbsp;</li>
{{/result}}
</ul>
<ul class="labels">
  <li>30 days ago</li>
  <li>Service A uptime</li>
  <li>today</li>
</ul>

<h3>Service B</h3>
<ul class="grids">
{{#result}}
<li class="uptime-{{uptime_data.service_b.raw}}">&nbsp;</li>
{{/result}}
</ul>
<ul class="labels">
  <li>30 days ago</li>
  <li>Service B uptime</li>
  <li>today</li>
</ul>

<h3>Service C</h3>
<ul class="grids">
{{#result}}
<li class="uptime-{{uptime_data.service_c.raw}}">&nbsp;</li>
{{/result}}
</ul>
<ul class="labels">
  <li>30 days ago</li>
  <li>Service C uptime</li>
  <li>today</li>
</ul>

Gradient uptime heatmap

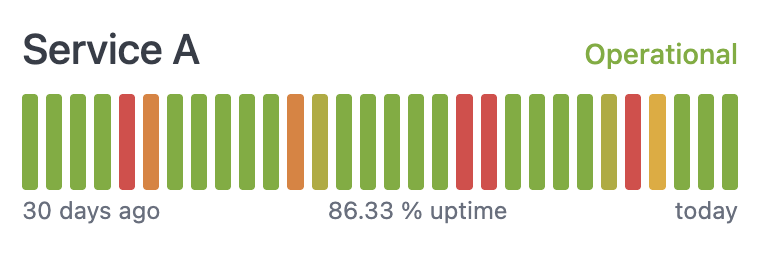

This example shows the last 30 days of data, bucketing the colors along a red to yellow to green gradient. Also adds colored text to explain the current status.

Setup

Again, the setup here is straight-forward. You'll need a column for the time unit, a column for the percentage measurement, and a calculation to figure out how to apply the color. The gradient in this example is bucketed into 5 possible values. Adjust the calculation for Color tier to control how the coloring is applied. Add column totals to the query and change the total calculation to "average" to add the average uptime below each chart.

Note that this example invents an uptime percentage value via a calculation.

The following table explains the query setup, including the calculation formulas.

Col	Name	Description or formula	Purpose
A	Date	Time unit slot	used for drawing each box
B	Uptime (calc_1)	Uptime value	0-1 value for the time slot
C	Color tier (calc_2)	IF(B1 > 0.75, 1, IF(B1 > 0.7, 2, IF(B1 > 0.65, 3, IF(B1 > 0.6, 4, 5))))	Bucket-ize the uptime value

Example code

View example code

<style>
  --l1: #76AD2D;
  --l2: #B0AB29;
  --l3: #E5A924;
  --l4: #E37F32;
  --l5: #E04345;

  h3 {
    margin-block: 0 var(--size1);
    display: flex;
    flex-direction: row;
    justify-content: space-between;
    align-items: baseline;

    & .status {
      font-size: var(--font-sm);
      display: none;
    }
    & .status.level-1.operational {
      display: block;
      color: var(--l1);
    }
    & .status.level-2.impacted {
      display: block;
      color: var(--l2);
    }
    & .status.level-3.impacted{
      display: block;
      color: var(--l3);
    }
    & .status.level-4.impacted, {
      display: block;
      color: var(--l4);
    }
    & .status.level-5.down {
      display: block;
      color: var(--l5);
    }
  }
  ul.uptime {
    display: grid;
    list-style: none;
    margin: 0;
    padding: 0;
    grid-template-columns: repeat(30, 1fr);
    gap: 4px;

    & li {
      font-size: 8px;
      background: lightblue;
      display: block;
      width: 100%;
      height: 48px;
      border-radius: 2px;
    }

    & li.uptime-1 {
      background: var(--l1);
    }
    & li.uptime-2 {
      background: var(--l2);
    }
    & li.uptime-3 {
      background: var(--l3);
    }
    & li.uptime-4 {
      background: var(--l4);
    }
    & li.uptime-5 {
      background: var(--l5);
    }
  }

  ul.labels {
    display: flex;
    flex-direction: row;
    list-style: none;
    justify-content: space-between;
    padding: 0;
    margin: 0;
    font-size: var(--font-xs);
    color: var(--color-text2);
  }
p.notes {
  margin-top: var(--size8);
  color: var(--color-text1);
}
</style>
<h3>Service A
  <span class="status level-{{result.29.calc_2.value}} operational">Operational</span>
  <span class="status level-{{result.29.calc_2.value}} impacted">Impacted</span>
  <span class="status level-{{result.29.calc_2.value}} down">Down</span>
</h3>
<ul class="uptime">
{{#result}}
<li class="uptime-{{calc_2.value}}">&nbsp;</li>
{{/result}}
</ul>
<ul class="labels">
  <li>30 days ago</li>
  <li>86.33 % uptime</li>
  <li>today</li>
</ul>
