Table with tiny bar charts

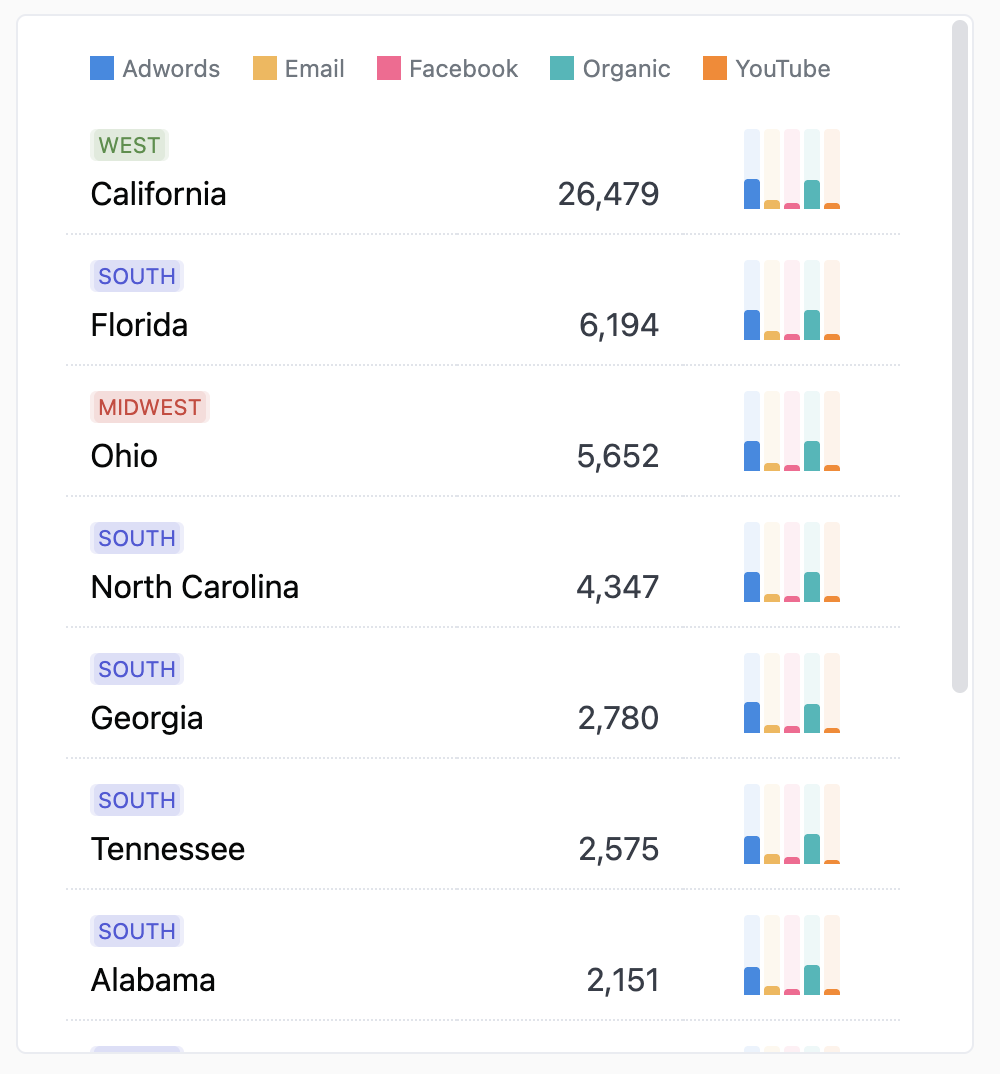

The code for this example can be used in the Markdown visualization to create a styled table with a small bar chart in each row of. A row in the markdown table corresponds to a row in the results.

Setup

These charts use the Mustache iterator syntax to draw a chart for each row in the results. Your query should have a column for each bar that you want to display and then a calculation column for each bar that determines the height of each bar. The calculation in this example calculates the bar height as a percentage of the total for all the traffic sources. Adjust your calculation as needed for different analyses, but make sure you use the % formatting on the calculation column.

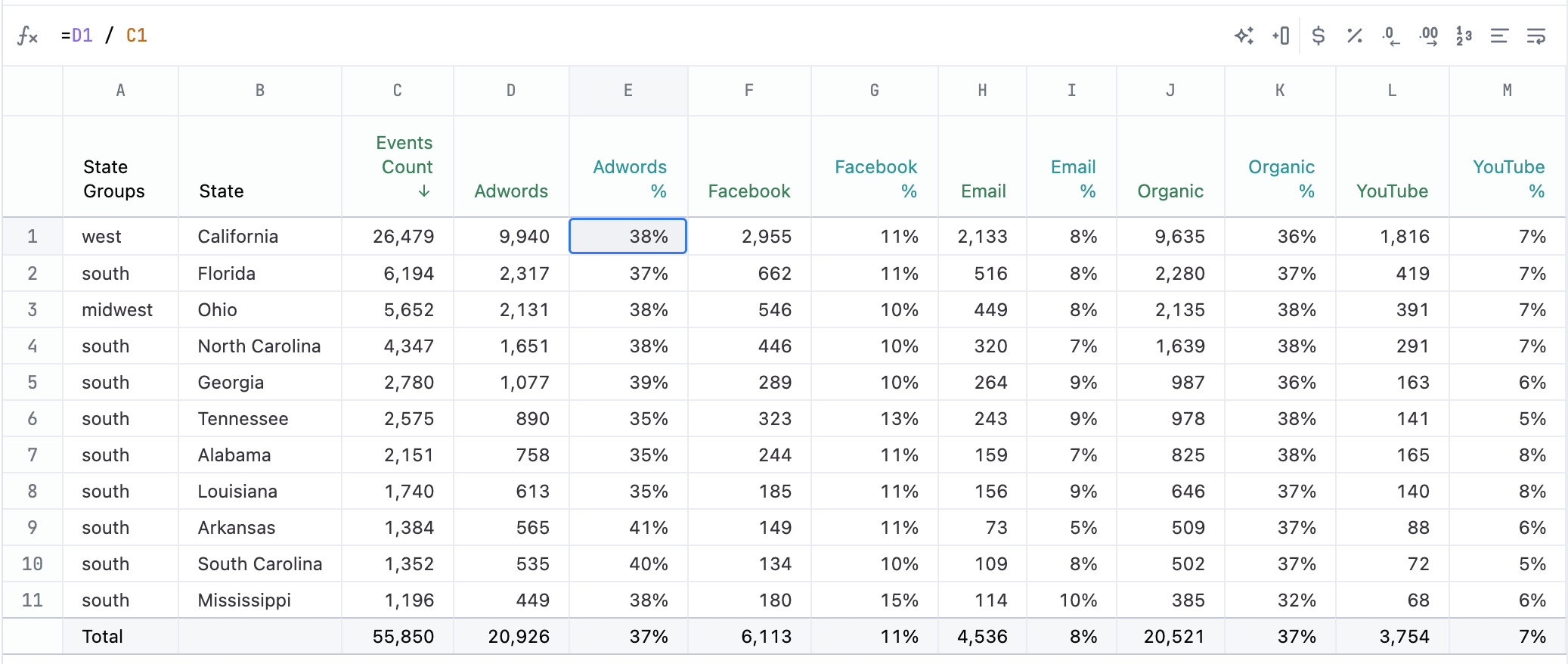

The following table explains each field used in the example, including the calculation formulas.

Col	Name	Description or formula	Purpose
A	State Groups	query field	used to make cute little badges in each row
B	State	query field	main label for the row
C	Events Count	query field	Total events used in table for displaying and to calculate denominator for bar height
D	Adwords	query field	Blue bar
E	Adwords % (calc_7)	=D1 / C1	% fill for blue bar (make sure to format as %)
F	Adwords	query field	Yellow bar
G	Adwords % (calc_8)	=F1 / C1	% fill for yellow bar (make sure to format as %)
H	Adwords	query field	Pink bar
I	Adwords % (calc_9)	=H1 / C1	% fill for pink bar (make sure to format as %)
J	Adwords	query field	Teal bar
K	Adwords % (calc_10)	=J1 / C1	% fill for teal bar (make sure to format as %)
L	Adwords	query field	Orange bar
M	Adwords % (calc_11)	=L1 / C1	% fill for orange bar (make sure to format as %)

Example code

<style>
 <style>
article.fancy-table {
  --color-adwords: 41,139,229;
  --color-email: 247,181,78;
  --color-facebook: 255,98,145;
  --color-organic: 29,185,185;
  --color-youtube: 255,133,21;
  --bar-height: 40px;
  --color-source: 0,0,0;
  --color-opacity: 0.1;
  --color-west: 80,144,70;
  --color-south: 79,89,218;
  --color-midwest: 210,66,58;
  --color-northeast: 176,76,186;

  & .adwords { --color-source: var(--color-adwords);}
  & .email { --color-source: var(--color-email);}
  & .facebook { --color-source: var(--color-facebook);}
  & .organic { --color-source: var(--color-organic);}
  & .youtube { --color-source: var(--color-youtube);}

  & .west { --color-tag: var(--color-west); }
  & .south { --color-tag: var(--color-south); }
  & .midwest { --color-tag: var(--color-midwest); }
  & .northeast { --color-tag: var(--color-northeast); }

  & ul {
    list-style: none;
    margin: 0;
    padding: 0;

    & li {
      padding: 0;
      margin: 0;
    }
  }
}
article.fancy-table ul.source-legend {
  display: flex;
  flex-direction: row;
  gap: 16px;
  padding: 0 0 8px 12px;

  & li {
    display: flex;
    flex-direction: row;
    gap: 4px;
    align-items: center;
    color: var(--color-text1);
    font-size: var(--font-xs);

    & span {
      display: block;
      width: 12px;
      height: 12px;
      background-color: rgb(var(--color-source));
    }
  }
}
article.fancy-table table {
  width: 100%;
  border-collapse: collapse;

  & thead { display: none;}
  & th { white-space: nowrap; }
  & td {
    padding-block: 12px;
    padding-inline: 12px;
    border-bottom: 1px dotted var(--color-border2);
    vertical-align: bottom;
  }
  & td.metrics,
  & th.metrics {
    text-align: right;
  }
  & td.metrics {
    font-size: var(--font-md);
  }
  & td.summary ul {
    display: flex;
    flex-direction: column;
    gap: 8px;
    justify-content: center;

    & .type span {
      display: inline-block;
      background: rgba(var(--color-tag),0.1);
      padding: 0px 2px;
      border-radius: 3px;
      font-size: var(--font-xxs);
      text-transform: uppercase;
      color: rgb(var(--color-tag));
    }
    & .title {
      color: var(--color-text4);
      font-size: var(--font-md);
    }
  }
  & td.sources ul {
    display: flex;
    flex-direction: row;
    height: var(--bar-height);
    gap: 2px;
    justify-content: center;

    & li {
      width: 8px;
      height: 100%;
      background-color: rgba(var(--color-source), var(--color-opacity));
      border-radius: 2px 2px 0 0;
      display: flex;
      flex-direction: column-reverse;
      position: relative;
      --tooltip-width: 100px;
      --tooltip-height: 36px;
      --translate-tip: calc(-1 * var(--tooltip-width));

      & span.bar {
        display: block;
        width: 100%;
        height: 1%;
        border-radius: 2px 2px 0 0;
        background-color: rgb(var(--color-source));
      }
      & span.tooltip-content {
        visibility: hidden;
        opacity: 0;
        position: absolute;
        z-index: 1;
        bottom: 100%;
        left: calc(0% - 8px);
        top: calc(50% - var(--bar-height) / 2);
        transform: translateX(var(--translate-tip));
        height: var(--tooltip-height);
        width: var(--tooltip-width);
        background-color: #333;
        color: white;
        text-align: center;
        border-radius: 5px;
        padding: 4px 6px;
        font-size: 10px;
        font-weight: normal;
        transition: opacity 0.15s;
        box-shadow: -2px 2px 8px rgba(0,0,0,0.2);
        line-height: 1.4;
        word-wrap: break-word;
        white-space: normal;
        border-left: 8px solid rgb(var(--color-source));
      }
      & span.tooltip-content::after {
        content: "";
        position: absolute;
        top: Calc(50% - 5px);
        right: -5px;
        margin-right: -5px;
        border-width: 5px;
        border-style: solid;
        border-color: #333 transparent transparent transparent;
        transform: rotate(-90deg);
      }
    }
    & li:hover .tooltip-content {
      visibility: visible;
      opacity: 1;
    }
  }
}
</style>

<article class="fancy-table">
<ul class="source-legend">
  <li class="adwords"><span></span>Adwords</li>
  <li class="email"><span></span>Email</li>
  <li class="facebook"><span></span>Facebook</li>
  <li class="organic"><span></span>Organic</li>
  <li class="youtube"><span></span>YouTube</li>
</ul>
<table>
  <thead>
    <tr>
      <th class="summary">Article</th>
      <th class="metrics">Total Views</th>
      <th class="sources">Source</th>
    </tr>
  </thead>
  <tbody>
{{#result}}
<tr>
  <td class="summary">
    <ul>
      <li class="type {{events.state_groups.raw}}"><span>{{events.state_groups.value}}</span></li>
      <li class="title">{{events.state.value}}</li>
    </ul>
  </td>
  <td class="metrics">{{events.count.value}}</td>
  <td class="sources">
    <ul>
      <li class="adwords">
        <span class="bar" style="height: {{calc_7.value_static}}"></span>
        <span class="tooltip-content">
          {{fields.events.count_adwords.label}}<br />
          {{events.count_adwords.value}} • {{calc_7.value_static}}</span>
      </li>
      <li class="email">
        <span class="bar" style="height: {{calc_8.value_static}}"></span>
        <span class="tooltip-content">
          {{fields.events.count_email.label}}<br />
          {{events.count_email.value}} • {{calc_8.value_static}}</span>
      </li>
      <li class="facebook">
        <span class="bar" style="height: {{calc_9.value_static}}"></span>
        <span class="tooltip-content">
          {{fields.events.count_adwords.label}}<br />
          {{events.count_adwords.value}} • {{calc_9.value_static}}</span>
      </li>
      <li class="organic">
        <span class="bar" style="height: {{calc_10.value_static}}"></span>
        <span class="tooltip-content">
          {{fields.events.count_organic.label}}<br />
          {{events.count_organic.value}} • {{calc_10.value_static}}</span>
      </li>
      <li class="youtube">
        <span class="bar"style="height: {{calc_11.value_static}}"></span>
        <span class="tooltip-content">
          {{fields.events.count_you_tube.label}}<br />
          {{events.count_you_tube.value}} • {{calc_11.value_static}}</span>
      </li>
    </ul>
  </td>
</tr>
{{/result}}
  </tbody>
</table>
</article>
