Markdown visualizations

Markdown visualizations allow for a combination of Markdown elements and query variables. You can use it to create a visualization that includes text, images, links, data, iframes, and more.

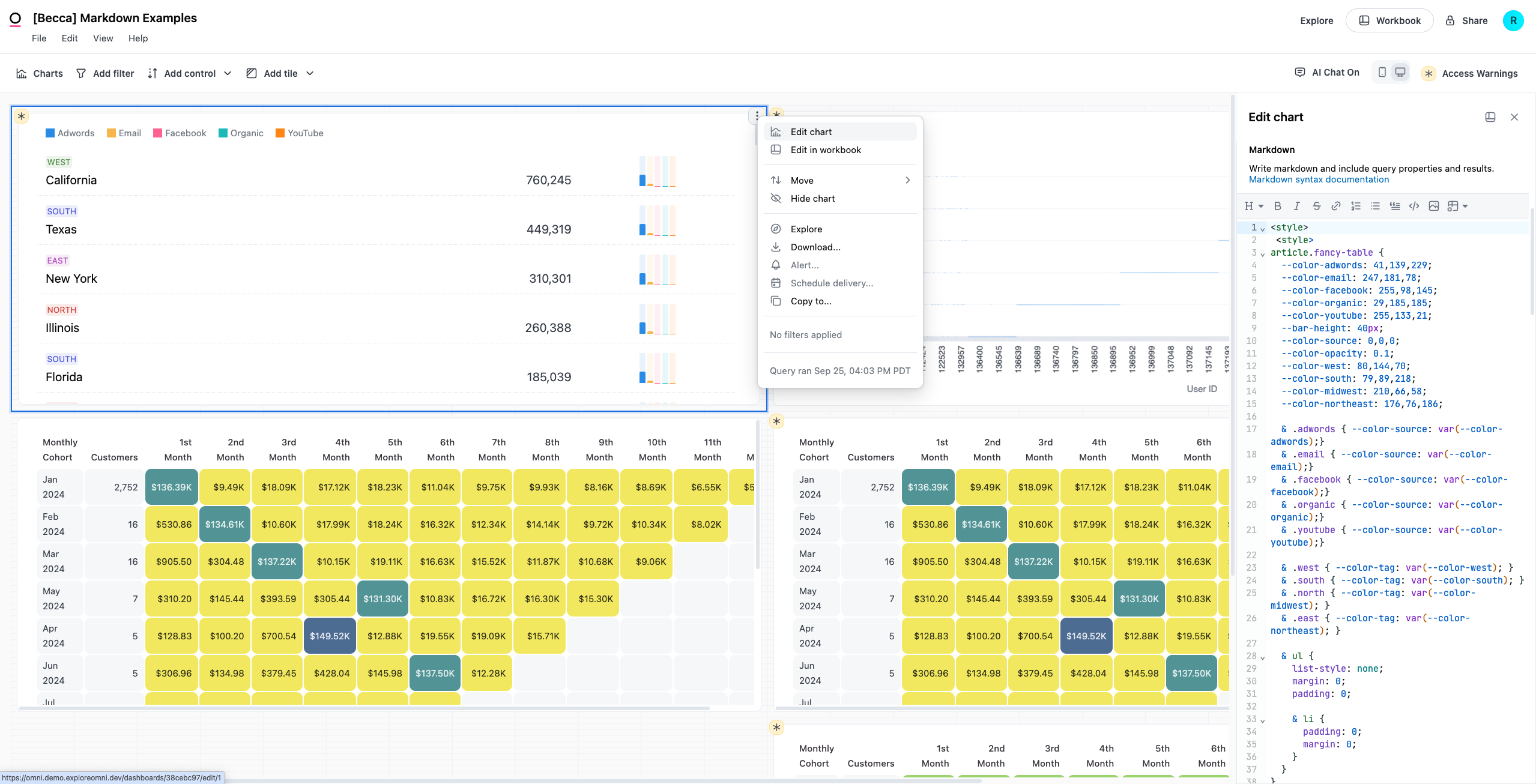

Using the Markdown editor​

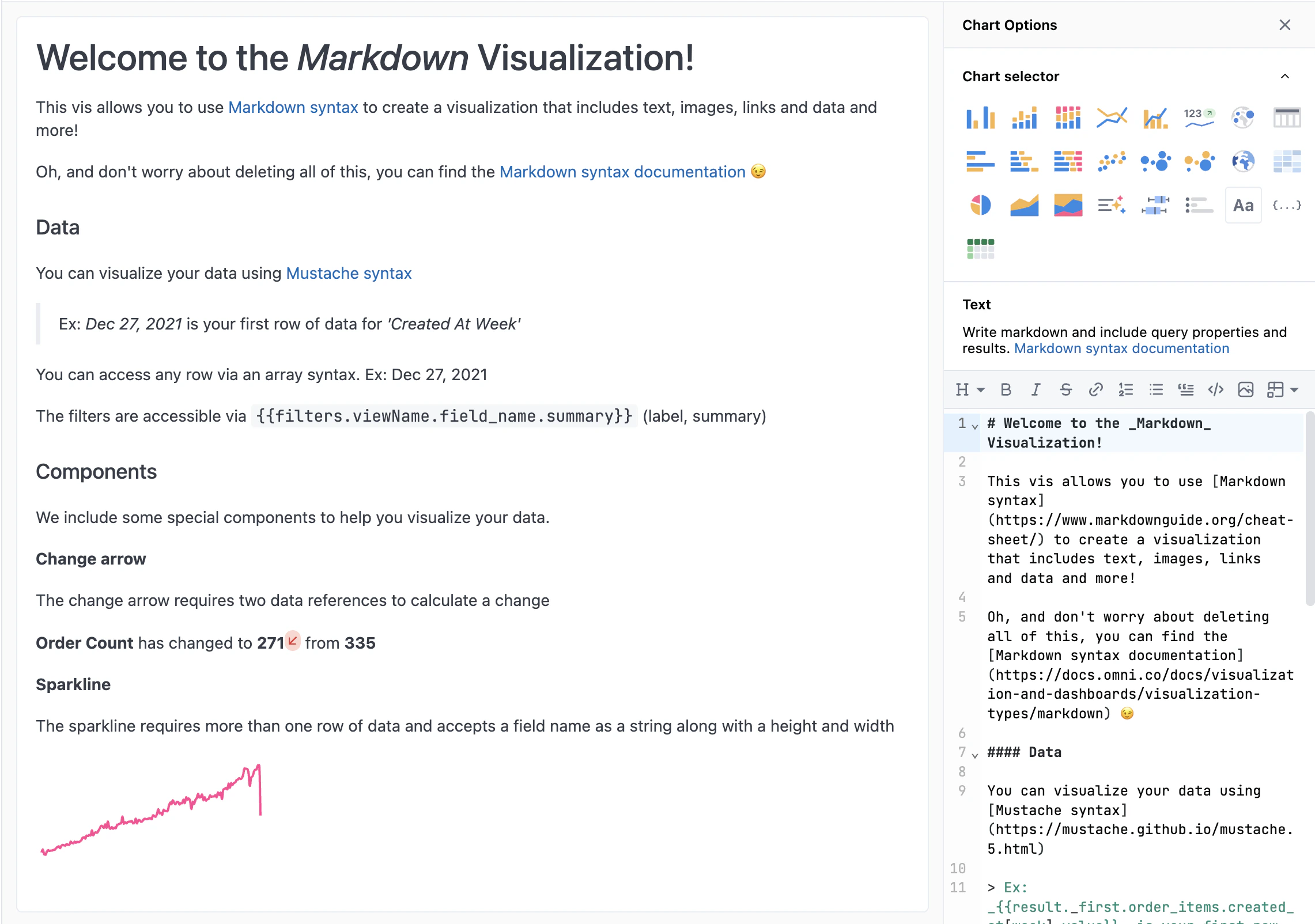

When you select Markdown as the visualization type, a Markdown editor will display in the chart's Options pane. As changes are made, the chart area will automatically update.

As you write, the chart area will update. At the top of the editor is a toolbar to help you generate correct Markdown syntax for common formatting actions.

Including HTML​

The Markdown editor interprets Markdown first and foremost. While it is possible to incorporate HTML, it helps to think of these more as text documents than true HTML files.

When formatting your code, keep the following in mind:

  • Indentation is interpreted as a code block. Keep your code flush to the left to prevent unintended code blocks.

  • Empty lines may cause odd behavior. In Markdown, these are paragraph indicators. This occurs because the div is included in a code block as plain text, which will strand its closing tag.

While you can use HTML, try to use it sparingly to simplify things. If you do need to use HTML elements:

  • Use supported semantic HTML elements where possible, such as article or section. Large numbers of divs in a row can cause parsing issues.

  • Limit the depth of div nesting. Deeply nested elements increase the likelihood of conflicts between the Markdown and HTML parsing.

  • Use <style></style> and CSS classes over inline style tags for custom CSS.

  • And you plan to generate PDFs, note that they can render differently than what's in the browser:

    • Directly referencing native HTML tags - for example, h3 { font-size: 18px; } - may not always work
    • Some characters in CSS can't be parsed causing those style declarations to be ignored. Some known situations:
      • the quotation marks needed for content: "foo"; will not work so avoid using the content declaration
      • &. and &: notation in your CSS will be ignored so if you nest your css avoid that syntax
    • Invalid HTML or CSS syntax may render as expected in the browser, but not in PNGs or PDFs

Referencing query elements​

Data and other elements from the query can be exposed using Mustache syntax. For example, {{query_element}}.

To reference query elements, you can do any of the following:

  1. Use the Query details drop-down menu inside the Markdown editor:

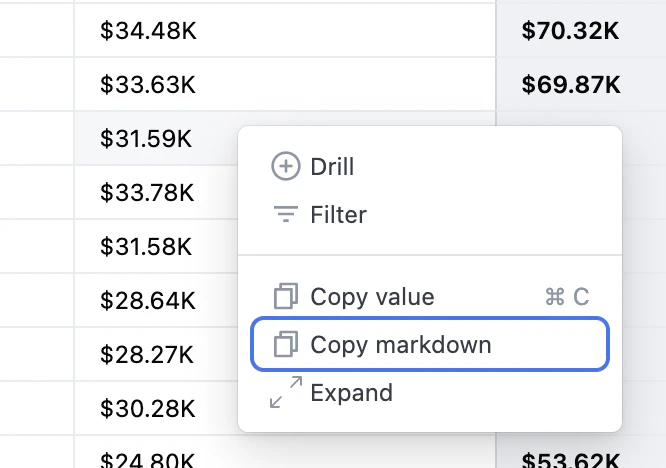

  2. Click any cell in the data table to copy the Markdown syntax:

  3. Write the syntax directly:

    • Fields: {{fields.view_name.field_name.property}}
    • Filters: {{filters.view_name.field_name.property}}

Refer to the Markdown Mustache syntax reference for more information and examples.

Looping through the results set​

To iteratively generate Markdown tiles based on the results set, use {{#result}} and {{/result}} to create a loop. For example:

{{#result}} // start a loop
  {{<view_name>.<field_name>.value}} // access contents of that loop
  [...] // you can reference more fields...
  {{<view_name_n>.<field_name_n>.value}} // ...maybe you'll want to separate them with a new line (<br>)
{{/result}} // end loop

To see this in action, check out these examples in the Markdown examples gallery:

Adding visual components​

Along with adding images and code to help highlight your data, you can also use the built-in components to create simple visualizations:

  • Change arrow - Adds an arrow icon indicating the type of change between two data points
  • Sparkline - Adds a sparkline. Useful for seeing the shape in variation in a simple, condensed way.

More complex visualizations are possible - check out the Markdown examples gallery for inspiration.

Change arrow​

Adds an arrow icon indicating the type of change between two data points. If the change is a positive number, the arrow will be green. If negative, it will be red.

To use this component, your results must include two data points that can be used to calculate a change.

<ChangeArrow current="{{result.0.users.count.value_static}}" comparison="{{result.1.users.count.value_static}}"></ChangeArrow>

Properties​

NameValueNotes
currentresult.0.view_name.field_name.value_staticUse value_static instead of value, since the value and not the drillable element is needed
comparisonresult.1.view_name.field_name.value_static

Sparkline​

Adds a sparkline. Useful for seeing the shape in variation in a simple, condensed way.

To use this component, your results must have more than one row of data and a field name.

<Sparkline field="users.count" color="cornflowerblue"></Sparkline>
Properties​
NameValueNotes
colorCSS color, ex: cornflowerblue
fieldview_name.field_name
heightInteger, ex: 4
widthInteger, ex: 4
reversetrueRemove property for false
typeline (default) or bar

Adding iframes​

Using iframes in a Markdown visualization is also supported. iframes can be parameterized with query elements.

By default, Omni applies restrictions (sandboxing) when rendering iframes. This means that some website features, such as popups, may be unavailable or incompatible.

Use the dropdowns to check out some examples.

Google Docs
note

Before embedding in Omni, publish the doc and retrieve its embed link.

Code:

<iframe width="650" height="450" src="https://docs.google.com/document/d/id"></iframe>

Result:

Google News

Code:

<iframe width="200" src="https://google.com/search?igu=1&q={{result._first.customers.name.value_static}}+company&tbm=nws&source=lnms&sa=X&ved=2ahUKEwjv1rPg7LmAAxXsFFkFHWTbCYcQ0pQJegQIPxAB&biw=1420&bih=840&dpr=2"></iframe>

Result:

Google Maps

Code:

<iframe src="https://www.google.com/maps/embed/v1/search?q={{result.0.products.brand.value_static}}+in+{{result._first.users.city.value_static}},{{result._first.users.state.value_static}}&key=AIzaSyCXfF4zpXaYkgVaBzj3oZUtmcDAxpdoOGk&" width="100%" height="100%"></iframe>

Result:

Twitter/X

Code:

<iframe height=250 width=550 src="https://twitframe.com/show?url=https%3A%2F%2Ftwitter.com%2Fjack%2Fstatus%2F20"></iframe>

Result:

Windy

Code:

<iframe width="650" height="450" src="https://embed.windy.com/embed2.html?lat=39.018&lon=-77.539&detailLat=39.018&detailLon=-77.539&width=650&height=450&zoom=5&level=surface&overlay=wind&product=ecmwf&menu=&message=&marker=&calendar=now&pressure=&type=map&location=coordinates&detail=&metricWind=default&metricTemp=default&radarRange=-1"></iframe>

Result:

YouTube

Code:

<iframe width="560" height="315" src="https://www.youtube.com/embed/lNAzOJrV-Zk" title="YouTube video player"></iframe>

Result:

Markdown visualizations can be as simple or as complex as you can make them. Check out the Markdown examples gallery to get inspired!
