Custom visualizations

Omni supports the most common visualization types and settings out of the box. However, if your business needs customization, you can:

• Leverage an iframe tag in a Markdown tile
• Create a Vega-Lite visualization

iframe custom visualizations

One way to create a custom visualization is to leverage an iframe tag in a Markdown tiles. The data in results + postMessages will render your custom iframes and provide a ton of flexibility.

For example:

<iframe src="https://example.html"></iframe>

Note: Included images won't render if they are scheduled. Additionally, the file must be hosted outside of Omni.

Vega-Lite visualizations

Many of Omni's charts are backed by Vega-Lite, which is a JSON-based spec for visualizations. You can directly edit a chart's code to customize it beyond what Omni provides out of the box.

If you are unfamiliar with Vega-Lite, check out the Vega-Lite documentation before perusing the example gallery.

Accessing the advanced editor

Heads up!

Before opening the advanced editor, note that:

• The existing visualization will break. To experiment with the advanced editor, create a copy of the query so you don't lose your work.
• Drill functionality will be unavailable

In the Chart tab of any workbook query, there are two ways to access the advanced editor:

• In the Chart selector - Click the { ... } icon to select the Vega code option. This will open the advanced editor, but without any pre-populated Vega code. This can be useful to start from scratch, such as with an example from Vega or one from the example gallery on this page.

• In the chart editor - For any chart powered by Vega-Lite, there will be a { } icon in the chart editor. Clicking it will open a menu with the following options:

  • View source - Opens a dialog to with the Vega-Lite JSON
  • Open in advanced editor - Copies the current chart code and opens it in the Advanced editor

Referencing data in the advanced editor

To use data from the results query, you'll need to reference the field by its view and field name as they are defined in the model. This will look like view_name\\.field_name in the editor.

The double forward-slashes (\\) are included because periods and brackets must be escaped. For example:

Omni object	Vega object
users.id	users\\.id
users.age	users\\.age
users.created_at	users\\.created_at
users.created_at[date]	users\\.created_at\\[date\\]
users.created_at[month]	users\\.created_at\\[month\\]
id	id

Note: In the last example, id would only occur from a raw SQL query as Omni will alias with the view.

Saving & resetting changes

Custom visualizations must be manually saved. While the visualization will update as you edit, the code is not auto-saved. Periodically click the Save button to save your changes.

To remove all edits made to the code, click Reset. This will revert the code to its original version.

Examples

tip

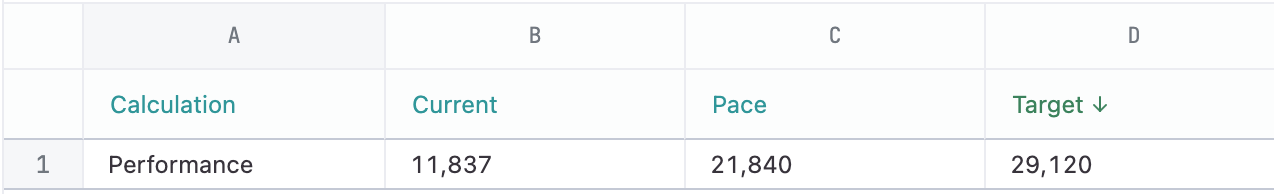

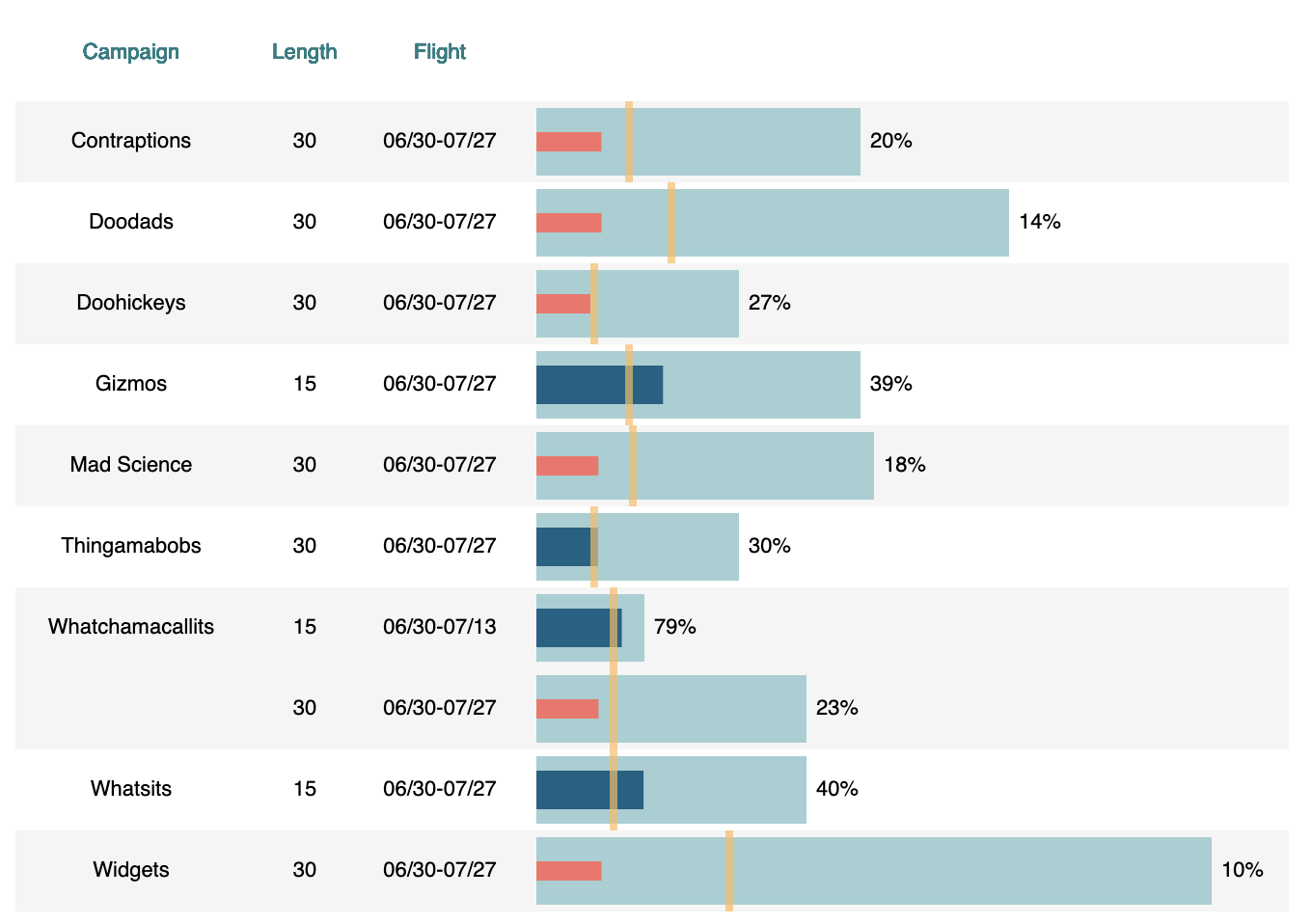

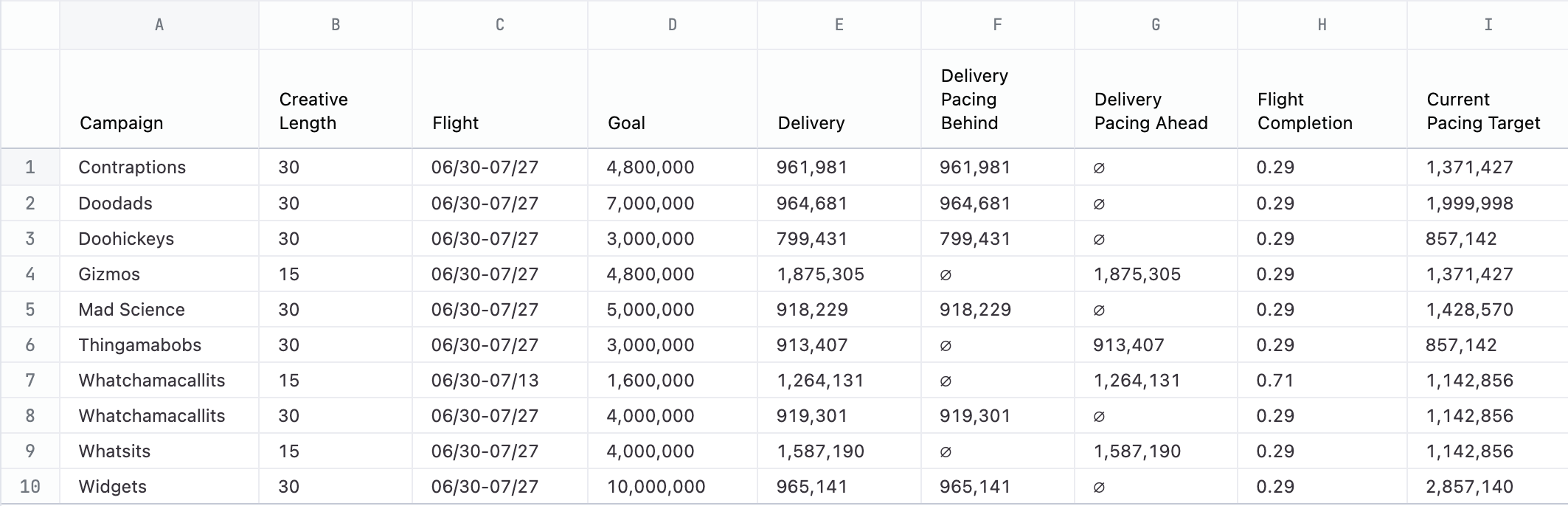

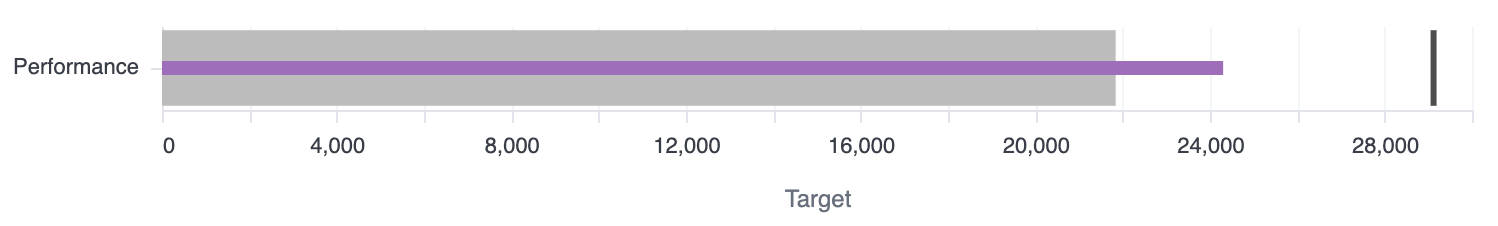

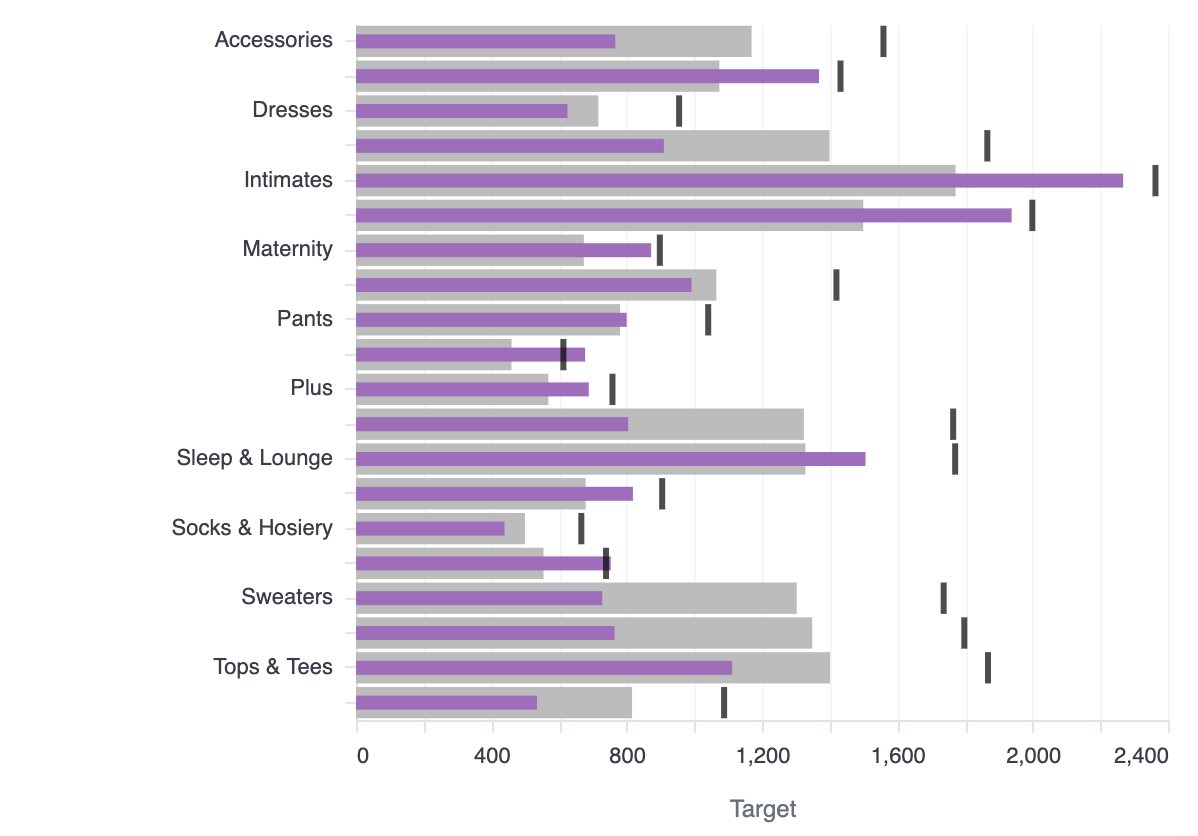

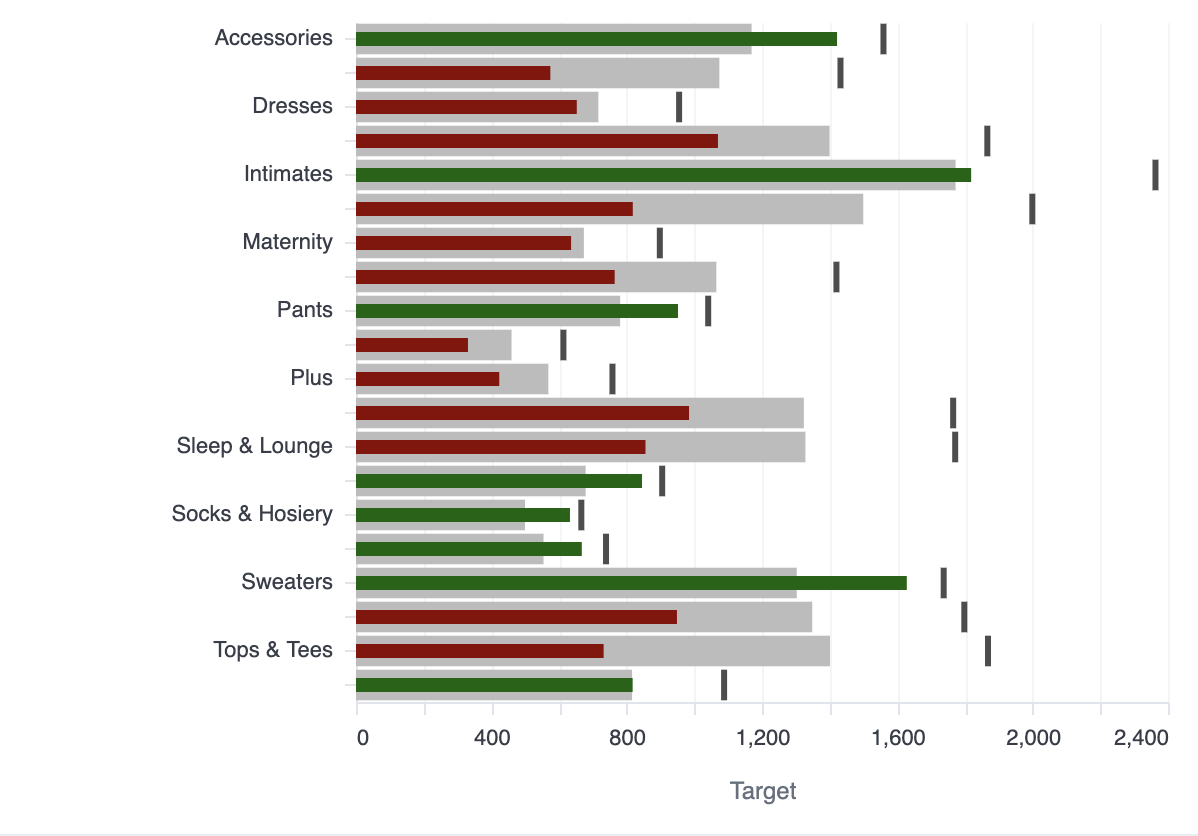

In addition to custom Vega-Lite visualizations, you can also build custom visualizations using HTML, CSS and Markdown. Check out the Markdown visualization examples for some inspiration.

US state map

warning

Omni recommends using the native map visualization for this visualization.

Query fields:

• users.state - Full-length state names are required for this visualization. To remove the legend, add "legend":null within color{...
• users.user_count

Visualization code

{
  "layer": [
    {
      "data": {
        "url": "https://cdn.jsdelivr.net/npm/us-atlas@3/states-10m.json",
        "format": {
          "type": "topojson",
          "feature": "states"
        }
      },
      "mark": {
        "fill": "lightgray",
        "type": "geoshape",
        "stroke": "black"
      }
    },
    {
      "mark": "geoshape",
      "width": "container",
      "height": "container",
      "encoding": {
        "href": {
          "type": "nominal",
          "field": "url"
        },
        "color": {
          "type": "quantitative",
          "field": "COLOR"
        },
        "shape": {
          "type": "geojson",
          "field": "geo"
        },
        "tooltip": [
          {
            "field": "STATE",
            "title": "State"
          },
          {
            "type": "quantitative",
            "field": "COLOR",
            "title": "User Count"
          }
        ]
      }
    }
  ],
  "width": "container",
  "height": "container",
  "transform": [
        {
          "as": "STATE",
          "calculate": "datum['your_view.your_state']"
        },
        {
          "as": "COLOR",
          "calculate": "datum['your_view.your_measure']"
        },
    {
      "as": "geo",
      "from": {
        "key": "properties.name",
        "data": {
          "url": "https://cdn.jsdelivr.net/npm/us-atlas@3/states-10m.json",
          "format": {
            "type": "topojson",
            "feature": "states"
          }
        }
      },
      "lookup": "STATE"
    },
    {
      "as": "url",
      "calculate": "'https://sandbox.proto.exploreomni.com/w/0a494c7e-3d8a-4f31-aa53-cb8d1e62f4fa/drill?ephemeral=DyXjRBEJ%2CRveZe1I6%2CZUK24UVr%2CHehug3WH%2CbuG0igrs%2CcNuuSY8a%2CnOHD__EL%2C3Dgpwy5c%2C0ta1FE8v%2CSsbC6Jdf&field=users.count&filters=%7B%7D&miniUuid=ZUK24UVr&row=%7B%22users.state%22%3A%22' + datum['users\\.state'] + '%22%2C%22state_id.state_id%22%3A%221%22%2C%22users.count%22%3A%221625%22%7D' "
    }
  ],
  "projection": {
    "type": "albersUsa"
  }
}

US map with latitude & longitude

warning

Omni recommends using the native map visualization for this visualization.

Query fields:

• users.zip
• users.zip_first_digit
• users.latitude_average
• users.longitude_average
• users.user_count

Visualization code

{
  "layer": [
    {
      "data": {
        "url": "https://vega.github.io/editor/data/us-10m.json",
        "format": {
          "type": "topojson",
          "feature": "states"
        }
      },
      "mark": {
        "fill": "lightgray",
        "type": "geoshape",
        "stroke": "white"
      }
    },
    {
      "transform": [
        {
          "as": "LATITUDE",
          "calculate": "datum['users\\.latitude_average']"
        },
        {
          "as": "LONGITUDE",
          "calculate": "datum['users\\.longitude_average']"
        },
        {
          "as": "COLOR",
          "calculate": "datum['calc_1']"
        }
      ],
      "mark": {
        "type": "circle",
        "tooltip": true
      },
      "encoding": {
        "size": {
          "value": 5
        },
        "color": {
          "type": "nominal",
          "field": "COLOR",
          "scale": {
            "scheme": "magma"
          },
          "legend": null
        },
        "latitude": {
          "type": "quantitative",
          "field": "LATITUDE"
        },
        "longitude": {
          "type": "quantitative",
          "field": "LONGITUDE"
        }
      }
    }
  ],
  "width": "container",
  "height": "container",
  "projection": {
    "type": "albersUsa"
  }
}

US map - zip code choropleth

warning

Omni recommends using the native map visualization for this visualization.

Query fields:

• users.zip
• users.user_count

Visualization code

{
  "layer": [
    {
      "data": {
        "url": "https://vega.github.io/editor/data/us-10m.json",
        "format": {
          "type": "topojson",
          "feature": "states"
        }
      },
      "mark": {
        "fill": "white",
        "type": "geoshape",
        "stroke": "black"
      }
    },
    {
      "mark": "geoshape",
      "width": "container",
      "height": "container",
      "encoding": {
        "color": {
          "type": "quantitative",
          "field": "users\\.count",
          "scale": {
            "domain": [
              0,
              20
            ],
            "scheme": "blues"
          },
          "legend": null
        },
        "shape": {
          "type": "geojson",
          "field": "geo"
        },
        "tooltip": [
          {
            "field": "ZIP"
          },
          {
            "type": "quantitative",
            "field": "COLOR",
            "title": "Users Count"
          }
        ]
      }
    }
  ],
  "transform": [
    {
          "as": "ZIP",
          "calculate": "datum['users.zip']"
        },
        {
          "as": "COLOR",
          "calculate": "datum['users.count']"
        },

    {
      "as": "geo",
      "from": {
        "key": "properties.zip",
        "data": {
          "url": "https://gist.githubusercontent.com/jefffriesen/6892860/raw/e1f82336dde8de0539a7bac7b8bc60a23d0ad788/zips_us_topo.json",
          "format": {
            "type": "topojson",
            "feature": "zip_codes_for_the_usa"
          }
        }
      },
      "lookup": "ZIP"
    }
  ],
  "projection": {
    "type": "albersUsa"
  }
}

US state map - zip code choropleth

Query fields:

• users.zip
• users.user_count

Visualization code

{
  "layer": [
    {
      "data": {
        "url": "https://raw.githubusercontent.com/OpenDataDE/State-zip-code-GeoJSON/master/dc_district_of_columbia_zip_codes_geo.min.json",
        "format": {
          "property": "features"
        }
      },
      "mark": {
        "fill": "white",
        "type": "geoshape",
        "stroke": "black"
      }
    },
    {
      "mark": "geoshape",
      "width": "container",
      "height": "container",
      "encoding": {
        "color": {
          "type": "quantitative",
          "field": "users\\.count",
          "scale": {
            "domain": [
              0,
              20
            ],
            "scheme": "blues"
          },
          "legend": null
        },
        "shape": {
          "type": "geojson",
          "field": "geo"
        },
        "tooltip": [
          {
            "field": "users\\.zip"
          },
          {
            "type": "quantitative",
            "field": "users\\.count",
            "title": "Users Count"
          }
        ]
      }
    }
  ],
  "transform": [
    {
      "as": "geo",
      "from": {
        "key": "properties.ZCTA5CE10",
        "data": {
          "url": "https://raw.githubusercontent.com/OpenDataDE/State-zip-code-GeoJSON/master/dc_district_of_columbia_zip_codes_geo.min.json",
          "format": {
            "property": "features"
          }
        }
      },
      "lookup": "users\\.zip"
    }
  ],
  "projection": {
    "type": "albersUsa"
  }
}

Sankey chart

A sankey chart shows the flow of users through two or more stages. The dataset requires values for:

• The start and end stack portions (start_at, end_at)
• Stages of the flow (start_stack)
• The size of the flow (size)

The field mapping has been pulled into a pair of calculate areas to map fields to the spec.

Query fields:

• start_at
• end_at
• size
• start_stack

Example dataset:

Visualization code

{
  "layer": [
    {
      "layer": [
        {
          "mark": {
            "type": "bar",
            "stroke": "white",
            "tooltip": true
          },
          "encoding": {
            "y": {
              "type": "quantitative",
              "field": "stack"
            },
            "y2": {
              "field": "stack_end"
            },
            "color": {
              "field": "block",
              "scale": {
                "scheme": "tableau10"
              },
              "legend": null
            }
          }
        },
        {
          "mark": {
            "y": {
              "expr": "scale('y', datum.stack + datum.SIZE / 2)"
            },
            "dx": {
              "expr": "bandwidth('x') / 2 + 2"
            },
            "dy": -2,
            "type": "text",
            "align": "left"
          },
          "encoding": {
            "text": {
              "value": {
                "expr": "[datum.block, format(datum.SIZE, ',.0d') + ' (' + format(datum.percentage,',.1%') + ')']"
              }
            }
          }
        }
      ],
      "encoding": {
        "x": {
          "type": "nominal",
          "field": "x"
        },
        "tooltip": [
          {
            "type": "nominal",
            "field": "block"
          },
          {
            "type": "quantitative",
            "field": "SIZE"
          },
          {
            "type": "quantitative",
            "field": "percentage",
            "format": ".1%"
          }
        ]
      },
      "transform": [
        {
          "as": "START_AT",
          "calculate": "datum['your_view.your_start_at']"
        },
        {
          "as": "END_AT",
          "calculate": "datum['your_view.your_end_at']"
        },
        {
          "as": "SIZE",
          "calculate": "datum['your_view.your_size']"
        },
        {
          "as": "START_STACK",
          "calculate": "datum['your_view.your_start_stack']"
        },
        {
          "as": "x",
          "calculate": "[datum.START_STACK, datum.START_STACK + 1]"
        },
        {
          "as": "block",
          "calculate": "[datum.START_AT, datum.END_AT]"
        },
        {
          "as": [
            "x",
            "block"
          ],
          "flatten": [
            "x",
            "block"
          ]
        },
        {
          "groupby": [
            "x",
            "block",
            "START_STACK"
          ],
          "aggregate": [
            {
              "as": "SIZE",
              "op": "sum",
              "field": "SIZE"
            }
          ]
        },
        {
          "groupby": [
            "x",
            "block"
          ],
          "aggregate": [
            {
              "as": "SIZE",
              "op": "max",
              "field": "SIZE"
            }
          ]
        },
        {
          "as": "key",
          "calculate": "datum.block + '@' + datum.x"
        },
        {
          "as": "stack",
          "sort": [
            {
              "field": "block",
              "order": "ascending"
            }
          ],
          "stack": "SIZE",
          "groupby": [
            "x"
          ]
        },
        {
          "groupby": [
            "x"
          ],
          "joinaggregate": [
            {
              "as": "total_size",
              "op": "sum",
              "field": "SIZE"
            }
          ]
        },
        {
          "as": "percentage",
          "calculate": "datum.SIZE/datum.total_size"
        }
      ]
    },
    {
      "mark": {
        "x": {
          "expr": "scale('x', datum.offset.stack) + bandwidth('x') * datum.offset.shift"
        },
        "line": false,
        "type": "area",
        "stroke": "lightgrey",
        "opacity": 0.25,
        "tooltip": true,
        "interpolate": "basis"
      },
      "encoding": {
        "y": {
          "type": "quantitative",
          "field": "offset.y"
        },
        "y2": {
          "field": "offset.y2"
        },
        "color": {
          "field": "START_AT",
          "scale": {
            "scheme": "tableau10"
          },
          "legend": null
        },
        "detail": {
          "field": "key"
        },
        "tooltip": [
          {
            "type": "nominal",
            "field": "START_AT",
            "title": "from"
          },
          {
            "type": "nominal",
            "field": "END_AT",
            "title": "to"
          },
          {
            "type": "quantitative",
            "field": "SIZE"
          }
        ]
      },
      "transform": [
        {
          "as": "START_AT",
          "calculate": "datum['your_view.your_start_at']"
        },
        {
          "as": "END_AT",
          "calculate": "datum['your_view.your_end_at']"
        },
        {
          "as": "SIZE",
          "calculate": "datum['your_view.your_size']"
        },
        {
          "as": "START_STACK",
          "calculate": "datum['your_view.your_start_stack']"
        },
        {
          "as": "key",
          "calculate": "datum.START_AT + ' ' + datum.END_AT + ' ' + datum.START_STACK"
        },
        {
          "as": "end_stack",
          "calculate": "datum.START_STACK + 1"
        },
        {
          "as": "start_block_offset",
          "calculate": "pluck(data('data_1'), 'stack')[indexof(pluck(data('data_1'), 'key'), datum.START_AT + '@' + datum.START_STACK)]"
        },
        {
          "as": "end_block_offset",
          "calculate": "pluck(data('data_1'), 'stack')[indexof(pluck(data('data_1'), 'key'), datum.END_AT + '@' + datum.end_stack)]"
        },
        {
          "as": "start_stack_size",
          "sort": [
            {
              "field": "END_AT",
              "order": "ascending"
            }
          ],
          "stack": "SIZE",
          "groupby": [
            "START_STACK",
            "START_AT"
          ]
        },
        {
          "as": "end_stack_size",
          "sort": [
            {
              "field": "START_AT",
              "order": "ascending"
            }
          ],
          "stack": "SIZE",
          "groupby": [
            "end_stack",
            "END_AT"
          ]
        },
        {
          "as": "offsets",
          "calculate": "[{'order': 1, 'stack': datum.START_STACK, 'shift': 1, 'y': datum.start_block_offset + datum.start_stack_size, 'y2': datum.start_block_offset + datum.start_stack_size_end}, {'order': 2, 'stack': datum.START_STACK, 'shift': 1.5, 'y': datum.start_block_offset + datum.start_stack_size, 'y2': datum.start_block_offset + datum.start_stack_size_end}, {'order': 3, 'stack': datum.end_stack, 'shift': -0.5, 'y': datum.end_block_offset + datum.end_stack_size, 'y2': datum.end_block_offset + datum.end_stack_size_end}, {'order': 4, 'stack': datum.end_stack, 'shift': 0, 'y': datum.end_block_offset + datum.end_stack_size, 'y2': datum.end_block_offset + datum.end_stack_size_end}]"
        },
        {
          "as": [
            "offset"
          ],
          "flatten": [
            "offsets"
          ]
        }
      ]
    }
  ],
  "width": "container",
  "config": {
    "view": {
      "stroke": null
    },
    "axisX": {
      "disable": true
    },
    "axisY": {
      "disable": true
    },
    "scale": {
      "bandPaddingInner": 0.7,
      "bandPaddingOuter": 0.2
    }
  },
  "height": "container",
  "resolve": {
    "scale": {
      "x": "shared",
      "y": "shared",
      "color": "shared"
    }
  }
}

Radial chart

A radial chart layers in exploding pie slices using the square root of the value.

Query Fields:

• products.category
• order_items.sale_price_sum

Visualization code

{
  "layer": [
    {
      "mark": {
        "type": "arc",
        "stroke": "#fff",
        "innerRadius": 30
      }
    },
    {
      "mark": {
        "dx": 4,
        "type": "text",
        "align": "center",
        "radiusOffset": 30
      },
      "encoding": {
        "text": {
          "type": "nominal",
          "field": "COLOR"
        }
      }
    }
  ],
  "height": "container",
  "width": "container",
  "encoding": {
    "color": {
      "type": "nominal",
      "field": "SIZE",
      "legend": null
    },
    "theta": {
      "type": "quantitative",
      "field": "SIZE",
      "stack": true
    },
    "radius": {
      "field": "SIZE",
      "scale": {
        "type": "sqrt",
        "zero": true,
        "rangeMin": 20
      }
    },
    "tooltip": [
      {
        "type": "nominal",
        "field": "COLOR",
        "title": "Category"
      },
      {
        "type": "quantitative",
        "field": "SIZE",
        "title": "Sales",
        "format": ",.2f"
      }
    ]
  },
      "transform": [
        {
          "as": "COLOR",
          "calculate": "datum['products.category']"
        },
        {
          "as": "SIZE",
          "calculate": "datum['order_items.sale_price_sum']"
        }
      ]
}

Cross-filtered chart pair

This visualization aggregates the top visualization over the highlight selection. Two charts are built from the data table, stacked, and then wired together. Note: This visualization also uses pixel sizing, which isn't ideal for use on dashboards where container should be used for sizing.

Query fields:

• order_items.created_at[date] - Filtered to 2021, the x-axis
• products.category - Filtered to five products, forming the color facets
• order_items.sale_price_sum - The y-axis
• order_items.count - The bubble size

Visualization code

{
  "vconcat": [
    {
      "mark": "point",
      "width": 600,
      "height": 300,
      "params": [
        {
          "name": "brush",
          "select": {
            "type": "interval",
            "encodings": [
              "x"
            ]
          }
        }
      ],
      "encoding": {
        "x": {
          "type": "temporal",
          "field": "X_AXIS",
          "title": "Date"
        },
        "y": {
          "type": "quantitative",
          "field": "TOP_Y",
          "title": "Total Sales"
        },
        "size": {
          "type": "quantitative",
          "field": "BOTTOM_Y",
          "title": "Count of Sales"
        },
        "color": {
          "value": "lightgray",
          "condition": {
            "type": "nominal",
            "field": "COLOR",
            "param": "brush",
            "title": "Category"
          }
        }
      },
      "transform": [
        {
          "as": "X_AXIS",
          "calculate": "datum['order_items.created_at[date]']"
        },
        {
          "as": "TOP_Y",
          "calculate": "datum['order_items.sale_price_sum']"
        },
        {
          "as": "BOTTOM_Y",
          "calculate": "datum['order_items.order_count']"
        },
        {
          "as": "COLOR",
          "calculate": "datum['products.category']"
        },
        {
          "filter": {
            "param": "click"
          }
        }
      ]
    },
    {
      "mark": "bar",
      "width": 600,
      "params": [
        {
          "name": "click",
          "select": {
            "type": "point",
            "encodings": [
              "color"
            ]
          }
        }
      ],
      "encoding": {
        "x": {
          "field": "TOP_Y",
          "title": "Sales",
          "aggregate": "sum"
        },
        "y": {
          "field": "COLOR",
          "title": "Category"
        },
        "color": {
          "value": "lightgray",
          "condition": {
            "field": "COLOR",
            "param": "click"
          }
        }
      },
      "transform": [
        {
          "as": "X_AXIS",
          "calculate": "datum['order_items.created_at[date]']"
        },
        {
          "as": "TOP_Y",
          "calculate": "datum['order_items.sale_price_sum']"
        },
        {
          "as": "BOTTOM_Y",
          "calculate": "datum['order_items.order_count']"
        },
        {
          "as": "COLOR",
          "calculate": "datum['products.category']"
        },
        {
          "filter": {
            "param": "brush"
          }
        }
      ]
    }
  ]
}

Flag marks scatterplot

caution

This visualization won't render if used in a delivery or alert.

This chart uses data about each country's economy and a flag emoji to create a scatterplot. The flag emoji is used as the mark to represent the country. This example also uses log-scale.

Query fields:

• flag - Flag emoji
• name - Country name
• rank
• gdp
• growth
• population
• gdp_per_capita
• gdp_percent_share

Example dataset:

Visualization code

{
  "mark": {
    "type": "text",
    "fontSize": 30
  },
  "width": "container",
  "height": "container",
  "transform": [
    {
      "as": "COUNTRY",
      "calculate": "datum['users.country']"
    },
    {
      "as": "X_AXIS",
      "calculate": "datum['users.count']"
    },
    {
      "as": "Y_AXIS",
      "calculate": "datum['order_items.sale_price_sum']"
    },
    {
      "as": "ICON",
      "calculate": "datum['calc_1']"
    }
  ],
  "encoding": {
    "x": {
      "type": "quantitative",
      "field": "X_AXIS",
      "scale": {
        "type": "log"
      }
    },
    "y": {
      "axis": {
        "labelOverlap": true
      },
      "type": "quantitative",
      "field": "Y_AXIS",
      "scale": {
        "type": "log"
      }
    },
    "text": {
      "type": "nominal",
      "field": "ICON"
    },
    "tooltip": [
      {
        "sort": null,
        "type": "nominal",
        "field": "ICON"
      },
      {
        "sort": null,
        "type": "nominal",
        "field": "name",
        "title": "COUNTRY"
      },
      {
        "sort": null,
        "type": "quantitative",
        "field": "X_AXIS"
      },
      {
        "type": "quantitative",
        "field": "Y_AXIS"
      }
    ]
  }
}

Waterfall

This waterfall chart requires both a custom visualization spec and some query munging. In this example, a change occurs state-by-state, at which point special bars are appended for the starting and ending values.

Note: The Vega spec contains a lot of calculation. This is intended to demonstrate the ability to extend the dataset to enhance the visualization.

Query fields:

• label
• value

Unioned queries

The underlying data is brought together by using a SQL UNION clause.

(SELECT 'Begin' AS "label", 1000 AS "amount" FROM users LIMIT 1)
UNION ALL
(SELECT "users.state", "amount" FROM orders)
UNION ALL
(SELECT 'End', 0 FROM users LIMIT 1)

• Begin row: Start value. Must be named 'Begin' for label; this can be replaced with the first value from the dataset in the future.
• Waterfall data set: Build with the UI and drop in the SQL, or use the Advanced Editor to write SQL. When updating to your own query data, remember to reference data with the view_name\\.field_name syntax.
• End row: Value must be 0. Must be named 'End'; this can be replaced in the future since it's all implied.

Visualization code

{
  "layer": [
    {
      "mark": {
        "size": 45,
        "type": "bar"
      },
      "encoding": {
        "y": {
          "type": "quantitative",
          "field": "previous_sum",
          "title": "Amount"
        },
        "y2": {
          "field": "sum"
        },
        "color": {
          "value": "#93c4aa",
          "condition": [
            {
              "test": "datum.LABEL === 'Begin' || datum.LABEL === 'End'",
              "value": "#f7e0b6"
            },
            {
              "test": "datum.sum < datum.previous_sum",
              "value": "#f78a64"
            }
          ]
        }
      }
    },
    {
      "mark": {
        "type": "rule",
        "color": "#404040",
        "opacity": 1,
        "xOffset": -22.5,
        "x2Offset": 22.5,
        "strokeWidth": 2
      },
      "encoding": {
        "y": {
          "type": "quantitative",
          "field": "sum"
        },
        "x2": {
          "field": "lead"
        }
      }
    },
    {
      "mark": {
        "dy": -4,
        "type": "text",
        "baseline": "bottom"
      },
      "encoding": {
        "y": {
          "type": "quantitative",
          "field": "sum_inc"
        },
        "text": {
          "type": "nominal",
          "field": "sum_inc",
          "format": "bigusdcurrency_2",
          "formatType": "omniNumberFormat"
        },
        "opacity": {
          "condition": {
            "test": "datum['sum_inc'] == 0",
            "value": "0"
          }
        }
      }
    },
    {
      "mark": {
        "dy": 4,
        "type": "text",
        "baseline": "top"
      },
      "encoding": {
        "y": {
          "type": "quantitative",
          "field": "sum_dec"
        },
        "text": {
          "type": "nominal",
          "field": "sum_dec",
          "format": "bigusdcurrency_2",
          "formatType": "omniNumberFormat"
        },
        "opacity": {
          "condition": {
            "test": "datum['sum_dec'] == 0",
            "value": "0"
          }
        }
      }
    },
    {
      "mark": {
        "type": "text",
        "baseline": "middle",
        "fontWeight": "bold"
      },
      "encoding": {
        "y": {
          "type": "quantitative",
          "field": "center"
        },
        "text": {
          "type": "nominal",
          "field": "AMOUNT",
          "format": "bigusdcurrency_2",
          "formatType": "omniNumberFormat"
        },
        "color": {
          "value": "white",
          "condition": [
            {
              "test": "datum.LABEL === 'Begin' || datum.LABEL === 'End'",
              "value": "#725a30"
            }
          ]
        },
        "opacity": {
          "condition": {
            "test": "datum['amount_percent'] < 0.07",
            "value": "0"
          }
        }
      }
    }
  ],
  "width": "container",
  "config": {
    "text": {
      "color": "#404040",
      "fontWeight": "bold"
    }
  },
  "height": "container",
  "encoding": {
    "x": {
      "axis": {
        "title": "Months",
        "labelAngle": 0
      },
      "sort": null,
      "type": "ordinal",
      "field": "LABEL"
    }
  },
  "transform": [
    {
      "as": "LABEL",
      "calculate": "datum['label']"
    },
    {
      "as": "AMOUNT",
      "calculate": "datum['amount']"
    },
    {
      "window": [
        {
          "as": "sum",
          "op": "sum",
          "field": "AMOUNT"
        }
      ]
    },
    {
      "window": [
        {
          "as": "lead",
          "op": "lead",
          "field": "LABEL"
        }
      ]
    },
    {
      "joinaggregate": [
        {
          "as": "total",
          "op": "sum",
          "field": "AMOUNT"
        }
      ]
    },
    {
      "as": "lead",
      "calculate": "datum.lead === null ? datum.LABEL : datum.lead"
    },
    {
      "as": "previous_sum",
      "calculate": "datum.LABEL === 'End' ? 0 : datum.sum - datum.AMOUNT"
    },
    {
      "as": "amount",
      "calculate": "datum.LABEL === 'End' ? datum.sum : datum.AMOUNT"
    },
    {
      "as": "text_amount",
      "calculate": "(datum.LABEL !== 'Begin' && datum.LABEL !== 'End' && datum.AMOUNT > 0 ? '+' : '') + datum.AMOUNT"
    },
    {
      "as": "amount_percent",
      "calculate": "abs(datum.AMOUNT) / datum.total"
    },
    {
      "as": "center",
      "calculate": "(datum.sum + datum.previous_sum) / 2"
    },
    {
      "as": "sum_dec",
      "calculate": "datum.sum < datum.previous_sum ? datum.sum : ''"
    },
    {
      "as": "sum_inc",
      "calculate": "datum.sum > datum.previous_sum ? datum.sum : ''"
    }
  ]
}

Tapered funnel

A tapered funnel is used to measure a funnel using several filtered measures. This chart calculates overall dropoff and step-by-step dropoff.

You can add or remove stages by editing the fold section and then the subseqent steps, removing the backticks: users\\.count then "measurename": "users.count".

Query fields:

• users.count
• users.count_california_seniors
• users.count_minors
• users.count_california_minors

Visualization code

{
  "layer": [
    {
      "mark": {
        "type": "bar",
        "color": "transparent"
      },
      "encoding": {
        "x": {
          "axis": "",
          "type": "quantitative",
          "field": "stagePos"
        }
      }
    },
    {
      "mark": {
        "type": "bar",
        "tooltip": true
      },
      "encoding": {
        "x": {
          "axis": "",
          "type": "quantitative",
          "field": "negCount"
        },
        "color": {
          "field": "stage",
          "scale": {
            "scheme": {
              "name": "oranges",
              "extent": [
                0.8,
                0
              ]
            }
          },
          "legend": null
        },
        "tooltip": [
          {
            "type": "nominal",
            "field": "stage",
            "title": "Stage"
          },
          {
            "type": "quantitative",
            "field": "count",
            "title": "Count"
          }
        ]
      }
    },
    {
      "mark": {
        "dx": {
          "expr": "datum.labelLeft ? -4 : 4"
        },
        "type": "text",
        "align": {
          "expr": "datum.labelLeft ? 'right' : 'left'"
        }
      },
      "encoding": {
        "x": {
          "axis": "",
          "type": "quantitative",
          "field": "negCount"
        },
        "text": {
          "field": "count"
        }
      }
    },
    {
      "mark": {
        "dx": 4,
        "type": "text",
        "align": "left"
      },
      "encoding": {
        "x": {
          "axis": "",
          "type": "quantitative",
          "field": "stagePos"
        },
        "text": {
          "field": "stage"
        }
      }
    },
    {
      "mark": {
        "type": "text",
        "align": "center"
      },
      "encoding": {
        "x": {
          "axis": "",
          "type": "quantitative",
          "field": "cumulativePos"
        },
        "text": {
          "field": "cumulativePct",
          "format": ".1%"
        }
      }
    },
    {
      "mark": {
        "type": "text",
        "align": "center"
      },
      "encoding": {
        "x": {
          "axis": "",
          "type": "quantitative",
          "field": "conversionPos"
        },
        "text": {
          "field": "conversionPct",
          "format": ".1%"
        }
      },
      "transform": [
        {
          "filter": "isValid(datum.previousCount)"
        }
      ]
    },
    {
      "mark": {
        "dx": {
          "expr": "datum.dx"
        },
        "type": "text",
        "align": {
          "expr": "datum.align"
        }
      },
      "encoding": {
        "x": {
          "axis": "",
          "type": "quantitative",
          "field": "pos"
        },
        "y": {
          "axis": null,
          "type": "nominal",
          "datum": "0. Titles"
        },
        "text": {
          "field": "caption"
        }
      },
      "transform": [
        {
          "filter": "!isValid(datum.previousCount)"
        },
        {
          "as": "zero",
          "calculate": "0"
        },
        {
          "as": [
            "column",
            "pos"
          ],
          "fold": [
            "stagePos",
            "zero",
            "cumulativePos",
            "conversionPos"
          ]
        },
        {
          "from": {
            "key": "column",
            "data": {
              "values": [
                {
                  "dx": 4,
                  "align": "left",
                  "column": "stagePos",
                  "caption": "Stage"
                },
                {
                  "dx": -4,
                  "align": "right",
                  "column": "zero",
                  "caption": "Count"
                },
                {
                  "dx": 0,
                  "align": "center",
                  "column": "cumulativePos",
                  "caption": "Overall"
                },
                {
                  "dx": 0,
                  "align": "center",
                  "column": "conversionPos",
                  "caption": "Previous"
                }
              ]
            },
            "fields": [
              "caption",
              "align",
              "dx"
            ]
          },
          "lookup": "column"
        }
      ]
    }
  ],
  "width": "container",
  "height": "container",
  "encoding": {
    "y": {
      "axis": "",
      "type": "nominal",
      "field": "stage"
    }
  },
  "transform": [
    {
      "as": [
        "measurename",
        "count"
      ],
      "fold": [
        "users\\.count",
        "users\\.count_california_seniors",
        "users\\.count_minors",
        "users\\.count_california_minors"
      ]
    },
    {
      "from": {
        "key": "measurename",
        "data": {
          "values": [
            {
              "stage": "1. Users",
              "measurename": "users.count"
            },
            {
              "stage": "2. California ",
              "measurename": "users.count_california_seniors"
            },
            {
              "stage": "3. Minors",
              "measurename": "users.count_minors"
            },
            {
              "stage": "4. California Minors",
              "measurename": "users.count_california_minors"
            }
          ]
        },
        "fields": [
          "stage"
        ]
      },
      "lookup": "measurename"
    },
    {
      "joinaggregate": [
        {
          "as": "maxCount",
          "op": "max",
          "field": "count"
        }
      ]
    },
    {
      "sort": [
        {
          "field": "stage",
          "order": "ascending"
        }
      ],
      "window": [
        {
          "as": "previousCount",
          "op": "lag",
          "field": "count"
        }
      ]
    },
    {
      "as": "cumulativePct",
      "calculate": "datum.count / datum.maxCount"
    },
    {
      "as": "conversionPct",
      "calculate": "datum.count / datum.previousCount"
    },
    {
      "as": "countPos",
      "calculate": "datum.maxCount * 0.5"
    },
    {
      "as": "cumulativePos",
      "calculate": "datum.maxCount * 0.08"
    },
    {
      "as": "conversionPos",
      "calculate": "datum.maxCount * 0.16"
    },
    {
      "as": "stagePos",
      "calculate": "datum.maxCount * -1.2"
    },
    {
      "as": "negCount",
      "calculate": "-datum.count"
    },
    {
      "as": "labelLeft",
      "calculate": "datum.count < 0.1 * datum.maxCount"
    }
  ]
}

Centered funnel

Funnel with currency

{
  "layer": [
    {
      "mark": "bar",
      "encoding": {
        "x": {
          "axis": false,
          "type": "quantitative",
          "field": "AMOUNT",
          "stack": "center"
        },
        "color": {
          "type": "nominal",
          "field": "COLOR",
          "legend": null
        }
      }
    },
    {
      "layer": [
        {
          "mark": {
            "dx": 0,
            "type": "text",
            "align": "right"
          },
          "encoding": {
            "text": {
              "type": "quantitative",
              "field": "AMOUNT",
              "format": "USDCURRENCY",
              "formatType": "omniNumberFormat"
            }
          }
        },
        {
          "mark": {
            "dx": 10,
            "type": "text",
            "align": "left"
          },
          "encoding": {
            "text": {
              "type": "quantitative",
              "field": "PERCENT",
              "format": "PERCENT",
              "formatType": "omniNumberFormat",
              "condition": {
                "test": "datum['PERCENT'] > 1",
                "value": "N/A"
              }
            }
          }
        }
      ]
    }
  ],
  "transform": [
    {
      "as": "COLOR",
      "calculate": "datum['events.event_type']"
    },
    {
      "as": "AMOUNT",
      "calculate": "datum['events.count']"
    },
    {
      "window": [
        {
          "field": "AMOUNT",
          "op": "lag",
          "as": "PREVIOUS_AMOUNT"
        }
      ]
    },
    {
      "as": "PERCENT",
      "calculate": "datum.AMOUNT/datum.PREVIOUS_AMOUNT"
    }
  ],
  "width": "container",
  "height": "container",
  "encoding": {
    "y": {
      "axis": {
        "title": false
      },
      "sort": null,
      "type": "nominal",
      "field": "events\\.event_type"
    }
  }
}

Funnel with a dimension & a measure

  {
  "layer": [
    {
      "mark": "bar",
      "encoding": {
        "x": {
          "axis": false,
          "type": "quantitative",
          "field": "events\\.count",
          "stack": "center"
        },
        "color": {
          "type": "nominal",
          "field": "events\\.event_type",
          "legend": null
        }
      }
    },
    {
      "layer": [
        {
          "mark": {
            "dx": 0,
            "type": "text",
            "align": "right"
          },
          "encoding": {
            "text": {
              "type": "quantitative",
              "field": "events\\.count",
              "formatType": "omniNumberFormat"
            }
          }
        },
        {
          "mark": {
            "dx": 10,
            "type": "text",
            "align": "left"
          },
          "encoding": {
            "text": {
              "type": "nominal",
              "field": "phase"
            }
          },
          "transform": [
            {
              "as": "phase",
              "calculate": "datum.calc_1 + '%'"
            }
          ]
        }
      ]
    }
  ],
  "width": "container",
  "height": "container",
  "encoding": {
    "y": {
      "axis": {
        "title": false
      },
      "sort": null,
      "type": "nominal",
      "field": "events\\.event_type"
    }
  }
}

Funnel with three measures

  {
  "layer": [
    {
      "mark": "bar",
      "encoding": {
        "x": {
          "axis": false,
          "type": "quantitative",
          "field": "measure_value",
          "stack": "center"
        },
        "color": {
          "type": "nominal",
          "field": "measure_name",
          "legend": null
        }
      }
    },
    {
      "layer": [
        {
          "mark": {
            "dx": 0,
            "type": "text",
            "align": "right"
          },
          "encoding": {
            "text": {
              "type": "quantitative",
              "field": "measure_value",
              "formatType": "omniNumberFormat"
            }
          }
        },
        {
          "mark": {
            "dx": 10,
            "type": "text",
            "align": "left"
          },
          "encoding": {
            "text": {
              "type": "nominal",
              "field": "phase"
            }
          },
          "transform": [
            {
              "as": "phase",
              "calculate": "datum.calc_1 + '%'"
            }
          ]
        }
      ]
    }
  ],
  "width": "container",
  "height": "container",
  "encoding": {
    "y": {
      "axis": {
        "title": false
      },
      "sort": null,
      "type": "nominal",
      "field": "measure_name"
    }
  }
}

Gantt (timeline) chart

This chart takes advantage of x, x2 in Vega to create a start and end point for bars along a timeline for each user. It also includes config to improve the axis labels. Color could be included in an additional facet, using one more dimension to group different users together.

Query fields:

• users.full_name
• users.created_at[date]
• order_items.created_at[date]

Visualization code

{
  "mark": "bar",
  "encoding": {
    "y": {
      "field": "DIM",
      "type": "ordinal",
      "axis": {
        "title": "Name"
      }
    },
    "x": {
      "field": "START",
      "type": "temporal",
      "axis": {
        "title": "Date"
      }
    },
    "x2": {
      "field": "END",
      "type": "temporal"
    }
  },
  "transform": [
    {
      "as": "DIM",
      "calculate": "datum['users.full_name']"
    },
    {
      "as": "START",
      "calculate": "datum['users.created_at[date]']"
    },
    {
      "as": "END",
      "calculate": "datum['order_items.created_at[date]']"
    }
  ]
}

Isotope (stacked icons)

Unlike other charts, this chart requires the full granularity in the dataset to create the stacked icons. The core technique is to map the repeated values into icons and then stack them. Note: In this example, users.id is included in order to create one entry per row.

Query fields:

• users.email_domain
• users.id

Visualization code

{
  "mark": {
    "type": "text",
    "baseline": "middle"
  },
  "width": "container",
  "config": {
    "view": {
      "stroke": ""
    }
  },
  "height": "container",
  "encoding": {
    "x": {
      "axis": null,
      "type": "ordinal",
      "field": "rank"
    },
    "y": {
      "type": "nominal",
      "field": "DIM",
      "title": null
    },
    "size": {
      "value": 40
    },
    "text": {
      "type": "nominal",
      "field": "emoji"
    }
  },
  "transform": [
    {
      "as": "DIM",
      "calculate": "datum['users\\.traffic_source']"
    },
    {
      "as": "COUNTER",
      "calculate": "datum['users.id']"
    },
    {
      "as": "emoji",
      "calculate": "{'Search': '🐄', 'Display': '🐏', 'Organic': '🐖', 'Facebook': '🐢', 'Email': '🐢'}[datum.DIM]]"
    },
    {
      "window": [
        {
          "as": "rank",
          "op": "rank"
        }
      ],
      "groupby": [
        "DIM"
      ]
    }
  ]
}

Gauge

A gauge chart resembles a speedometer or dial and is typically used to display a single value within a predefined range. This visualization is useful for evaluating progress against a goal.

Example dataset:

Visualization code

{
  "layer": [
    {
      "mark": {
        "type": "arc",
        "color": "lightgrey",
        "theta": {
          "expr": "datum['_arc_start_radians']"
        },
        "radius": {
          "expr": "ring1_outer"
        },
        "theta2": {
          "expr": "datum['_arc_end_radians']"
        },
        "radius2": {
          "expr": "ring1_inner"
        },
        "cornerRadius": 10
      }
    },
    {
      "mark": {
        "type": "arc",
        "theta": {
          "expr": "datum['_ring_start_radians']"
        },
        "radius": {
          "expr": "ring1_outer"
        },
        "theta2": {
          "expr": "datum['_ring_end_radians']"
        },
        "radius2": {
          "expr": "ring1_inner"
        },
        "cornerRadius": 10
      },
      "name": "RING",
      "encoding": {
        "color": {
          "value": "#307E31",
          "condition": [
            {
              "test": "datum['ratio'] < 0.33",
              "value": "#880808"
            },
            {
              "test": "datum['ratio'] < 0.66",
              "value": "#E49B0F"
            }
          ]
        }
      }
    },
    {
      "mark": {
        "type": "text",
        "fontSize": 40
      },
      "encoding": {
        "text": {
          "field": "users\\.count",
          "format": "number",
          "formatType": "omniNumberFormat"
        },
        "color": {
          "value": "#307E31",
          "condition": [
            {
              "test": "datum['ratio'] < 0.33",
              "value": "#880808"
            },
            {
              "test": "datum['ratio'] < 0.66",
              "value": "#E49B0F"
            }
          ]
        }
      }
    }
  ],
  "width": "container",
  "config": {
    "concat": {
      "spacing": 0
    },
    "autosize": {
      "type": "fit",
      "resize": true,
      "contains": "padding"
    }
  },
  "height": "container",
  "params": [
    {
      "name": "ring_max",
      "value": 160
    },
    {
      "name": "ring_width",
      "value": 20
    },
    {
      "name": "ring_gap",
      "value": 5
    },
    {
      "name": "label_color",
      "value": "#000000"
    },
    {
      "name": "ring_background_opacity",
      "value": 0.3
    },
    {
      "name": "ring0_percent",
      "value": 100
    },
    {
      "expr": "ring_max+2",
      "name": "ring0_outer"
    },
    {
      "expr": "ring_max+1",
      "name": "ring0_inner"
    },
    {
      "expr": "ring0_inner-ring_gap",
      "name": "ring1_outer"
    },
    {
      "expr": "ring1_outer-ring_width",
      "name": "ring1_inner"
    },
    {
      "expr": "(ring1_outer+ring1_inner)/2",
      "name": "ring1_middle"
    },
    {
      "expr": "220",
      "name": "arc_size"
    }
  ],
  "transform": [
    {
      "as": "ratio",
      "calculate": "datum['users\\.count'] / ( datum['calc_1'] )"
    },
    {
      "as": "_arc_start_degrees",
      "calculate": "360 - ( arc_size / 2 )"
    },
    {
      "as": "_arc_end_degrees",
      "calculate": "0 + ( arc_size / 2 )"
    },
    {
      "as": "_arc_start_radians",
      "calculate": "2 * 3.14 * ( datum['_arc_start_degrees'] - 360 ) / 360"
    },
    {
      "as": "_arc_end_radians",
      "calculate": "2 * 3.14 * datum['_arc_end_degrees'] / 360"
    },
    {
      "as": "_arc_total_radians",
      "calculate": "datum['_arc_end_radians'] - datum['_arc_start_radians']"
    },
    {
      "as": "_ring_start_radians",
      "calculate": "datum['_arc_start_radians']"
    },
    {
      "as": "_ring_end_radians",
      "calculate": "datum['_arc_start_radians'] + ( datum['_arc_total_radians'] * datum['ratio'] )"
    }
  ]
}

Sunburst chart

Sunburst charts display hierarchical data in an easy-to-read way. Each ring represents a level in the hierarchy, and the size of each section conveys its proportion in comparison to the whole.

In this example, the inner slices are colored by order.

Query fields:

• users.gender
• users.traffic_source
• users.count

Example dataset:

Visualization code

{
  "layer": [
    {
      "mark": {
        "type": "arc",
        "tooltip": true,
        "innerRadius": {
          "expr": "min(width, height)/9"
        },
        "outerRadius": {
          "expr": "min(width, height)/3"
        }
      },
      "encoding": {
        "color": {
          "sort": "ascending",
          "type": "ordinal",
          "field": "OUT_IN",
          "scale": {
            "range": [
              "#1DF9B9",
              "#1DE5B9",
              "#1DD1B9",
              "#1DBDB9",
              "#1DA9B9",
              "#3DF23B",
              "#3DDA3B",
              "#3DC23B",
              "#3DAA3B",
              "#3D923B"
            ]
          },
          "title": "Inner Grouping"
        },
        "order": {
          "sort": "ascending",
          "field": "OUT_IN"
        },
        "theta": {
          "type": "quantitative",
          "field": "SIZE",
          "stack": true
        },
        "tooltip": [
          {
            "type": "nominal",
            "field": "OUTSIDE",
            "title": [
              "Outer Grouping"
            ]
          },
          {
            "type": "nominal",
            "field": "INSIDE",
            "title": [
              "Inner Grouping"
            ]
          },
          {
            "type": "quantitative",
            "field": "SIZE",
            "title": [
              "Count"
            ],
            "format": "NUMBER",
            "formatType": "omniNumberFormat"
          }
        ]
      }
    },
    {
      "mark": {
        "type": "arc",
        "tooltip": true,
        "innerRadius": {
          "expr": "min(width, height)/3"
        }
      },
      "encoding": {
        "color": {
          "sort": "ascending",
          "type": "ordinal",
          "field": "OUTSIDE",
          "scale": {
            "range": [
              "#1DD1B9",
              "#3DC23B"
            ]
          },
          "title": "Outer Grouping"
        },
        "order": {
          "sort": "ascending",
          "field": "OUTSIDE"
        },
        "theta": {
          "sort": "ascending",
          "type": "quantitative",
          "field": "total_users",
          "stack": true,
          "title": [
            "Users Count"
          ]
        },
        "tooltip": [
          {
            "type": "nominal",
            "field": "OUTSIDE",
            "title": [
              "Outer Grouping"
            ]
          },
          {
            "type": "quantitative",
            "field": "total_users",
            "title": [
              "Count"
            ],
            "format": "NUMBER",
            "formatType": "omniNumberFormat"
          }
        ]
      },
      "transform": [
        {
          "groupby": [
            "OUTSIDE"
          ],
          "aggregate": [
            {
              "as": "total_users",
              "op": "sum",
              "field": "SIZE"
            }
          ]
        }
      ]
    }
  ],
  "transform": [
    {
      "as": "OUTSIDE",
      "calculate": "datum['users.gender']"
    },
    {
      "as": "INSIDE",
      "calculate": "datum['users.traffic_source']"
    },
    {
      "as": "OUT_IN",
      "calculate": "datum.OUTSIDE + '-' + datum.INSIDE"
    },
    {
      "as": "SIZE",
      "calculate": "datum['users.count']"
    }
  ],
  "resolve": {
    "scale": {
      "color": "independent"
    },
    "legend": {
      "color": "independent"
    }
  }
}

Word cloud

Word clouds are an eye-catching way to visualize text data by showing the most common words in a dataset. The more frequently a word appears, the bigger and bolder it is, which makes it easy to spot key themes at a glance.

To use this example, change the following values in the custom visualization code:

• field values should match the values in the table
• Adjust the range to fit your query
• Adjust the domain to fit your query

Example query:

  SELECT category,
         COUNT(*) AS frequency,
         RANDOM() * (0.9 - 0.1) + 0.1 AS height,
         RANDOM() AS width
    FROM products
GROUP BY 1
ORDER BY 2 DESC
   LIMIT 25;

Example dataset:

Visualization code

{
  "mark": "text",
  "width": "container",
  "height": "container",
  "transform": [
    {
      "as": "DIM",
      "calculate": "datum['category']"
    },
    {
      "as": "SIZE",
      "calculate": "datum['frequency']"
    },
    {
      "as": "COLOR",
      "calculate": "datum['department']"
    },
    {
      "as": "X",
      "calculate": "random() * (0.9 - 0.1) + 0.1"
    },
    {
      "as": "Y",
      "calculate": "random()"
    }
  ],
  "encoding": {
    "x": {
      "axis": null,
      "field": "X"
    },
    "y": {
      "axis": null,
      "field": "Y"
    },
    "size": {
      "field": "SIZE",
      "legend": null
    },
    "text": {
      "field": "DIM"
    },
    "color": {
      "field": "COLOR",
      "scale": {
        "scheme": "tableau20"
      },
      "legend": null
    }
  }
}
