Embed parameters

The following parameters can be used to customize the resulting embed user or session:

• In standard SSO embed these parameters are passed as URL query parameters
• In 2-step SSO embed, the majority of these parameters are included as a JSON payload in the POST /generate-session request

Required parameters

The following parameters are required to create a valid embed request.

contentPath

Defines the starting page when the embed user logs into the iframe.

URL builder label	Content path
Required	Yes ✓
Accepted values	See below for example images of each page: Dashboard: /dashboards/<dashboard-id> Workbook: /w/<dashboard-id>/duplicate AI chat: /chat My documents: /my Entity folder: /entity-folder. Requires an entity parameter. The folder will be named using the entity value unless an entityFolderLabel parameter is also provided. Hub: /root
Example URL parameter	contentPath=%2Fdashboards%2Fa6908f35

Example pages

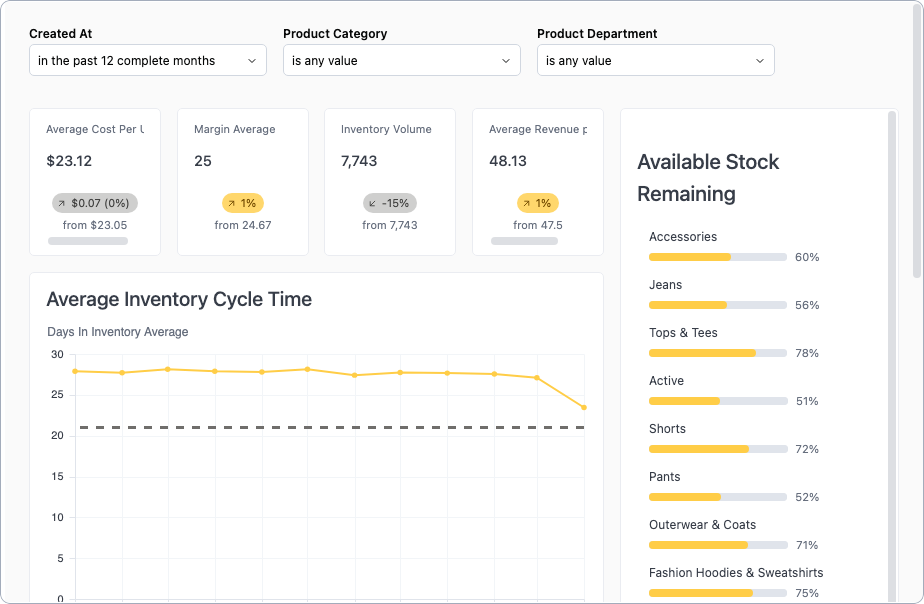

Dashboard (/dashboards/<dashboard-id>)

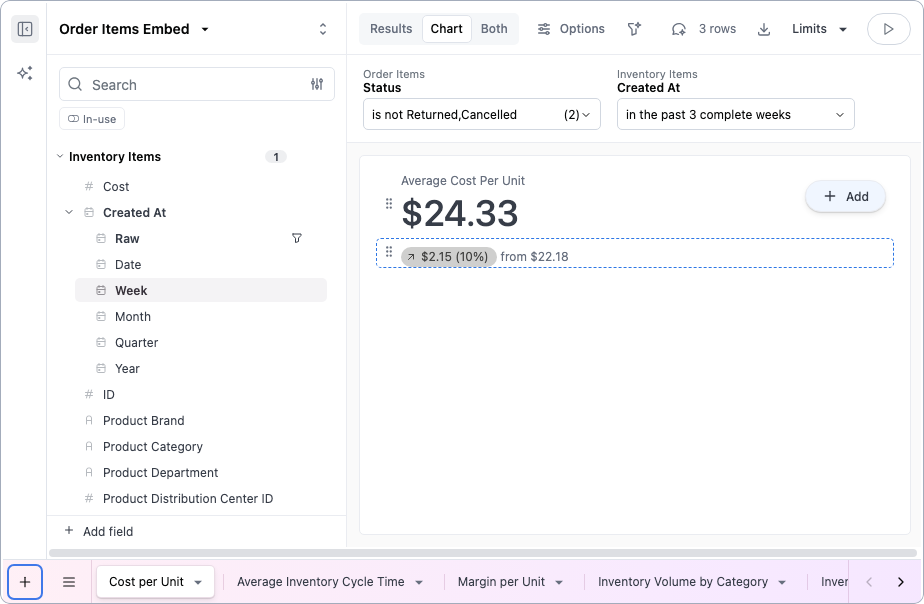

Workbook (/w/<dashboard-id>/duplicate)

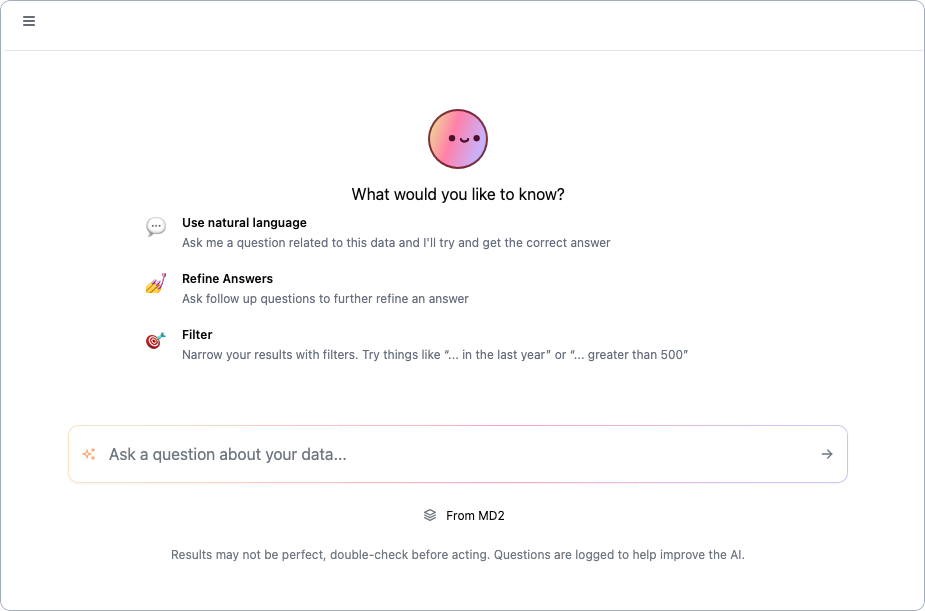

AI chat (/chat)

In this example, a connectionRoles parameter was also provided to associate the chat with a specific connection (MD2) and its models:

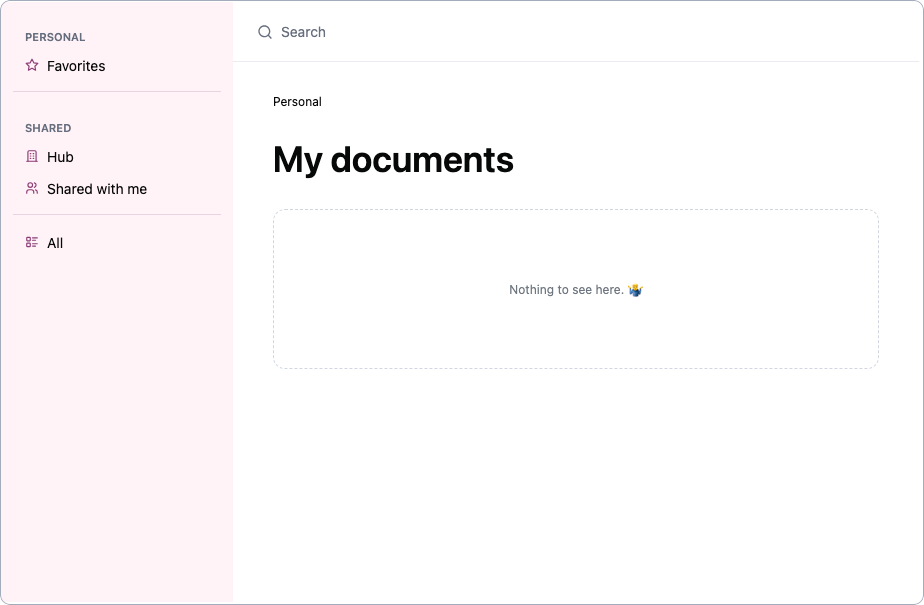

My documents (/my)

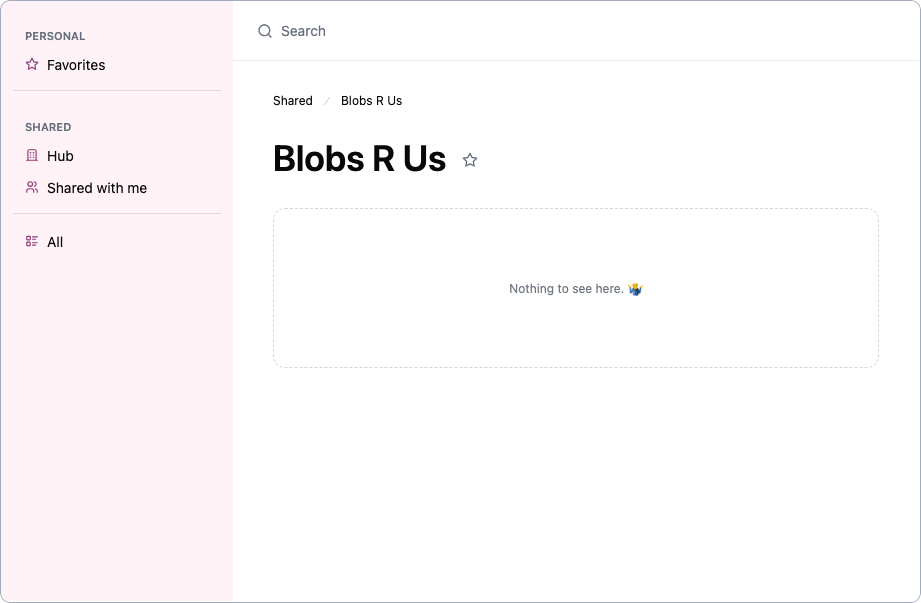

Entity folder (/entity-folder)

note

An entity parameter is required when /entity-folder is used as the contentPath.

By default, the entity value will be used to create the entity folder.

To provide a different name for the folder, use the entityFolderLabel parameter.

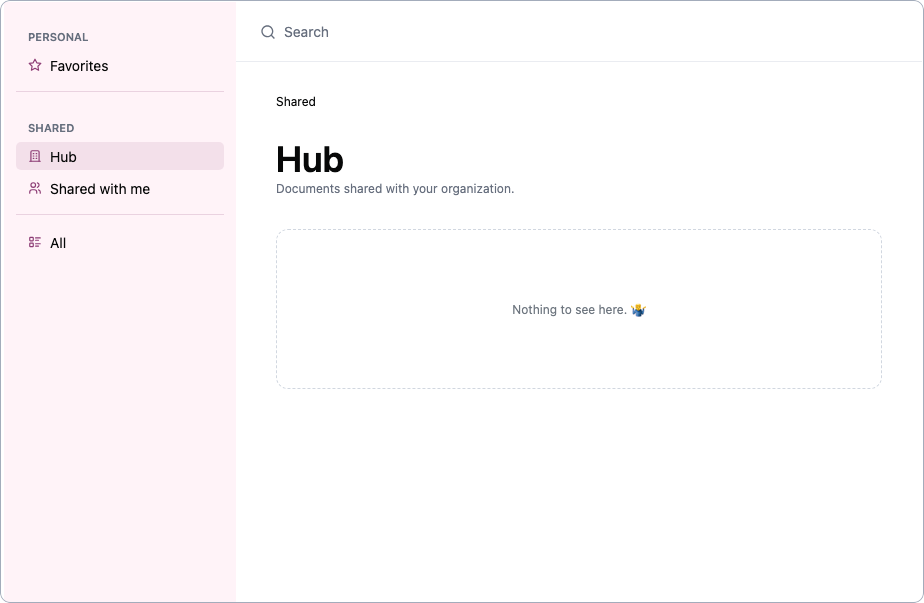

Hub (/root)

externalId

Creates a unique ID. Alphanumeric values are supported.

URL builder label	External ID
Required	Yes ✓
Example input(s)	sugar &spice123 123+EveryThingNice
Example URL parameter	externalId=ohtani17

name

Defines a non-unique name for the embed user's name property.

URL builder label	Name
Required	Yes ✓
Example input(s)	Blobby Blobby Hill Blobfather
Example URL parameter	name=Blob+Ross

nonce

A 32-character string that defines the embed login URL. This must be unique or the session will fail to load.

Note: If using the SDK or /embed/sso/generate-url endpoint, nonce will be automatically added to the generated URLs if one is not provided.

URL builder label	Nonce
Required	Yes ✓
Example input(s)	abcdefghijklmnopqrstuvwxyz123456
Example URL parameter	abcdefghijklmnopqrstuvwxyz123456

Recommended parameters

The following parameters are strongly recommended, but not required, in embed requests.

connectionRoles

Strongly recommended. An object of connection roles available for embed users. This parameter accepts an object of key-value pairs, formatted as "<connection_id>": "<connection_role>".

URL parameter	connectionRoles
Required	No X
Accepted connection role values	RESTRICTED_QUERIER - Can create new content and view workbooks and dashboards VIEWER - Can only view dashboards
Example input(s)	{"connection-id-1":"RESTRICTED_QUERIER", "connection-id-2":"VIEWER"}
Example URL parameter	connectionRoles=%7B%2265b10d2a-473b-4486-92c8-0ba628c7d1cb%22%3A%22RESTRICTED_QUERIER%22%7D

Optional

The following parameters are optional in embed requests.

accessBoost

A boolean that enables AccessBoost for the embedded dashboard.

URL builder label	Access Boost
Required	No X
Accepted values	true false
Example URL parameter	accessBoost=true

customTheme

Defines custom theme properties for styling embedded dashboards.

URL builder label	Custom theme
Required	No X
Accepted values	Refer to the Custom theme properties documentation for a list of available properties.
Example URL parameter	customTheme=%7B%22dashboard-background%22%3A%22blue%22%7D

customThemeId

Defines a theme ID from your Omni instance, used to stylize embedded dashboards.

URL builder label	Custom theme ID
Required	No X
Example input(s)	abcdefgh-ijkl-mnop-qrst-123456789123
Example URL parameter	customThemeId=abcdefgh-ijkl-mnop-qrst-123456789123

email

Populates the from email for entity users when sharing content or sending deliveries.

URL builder label	Email
Required	No X
Example input(s)	blobby@blobsrus.com
Example URL parameter	email=blobby17%40blobsrus.com

entity

Defines a user group identifier used to associate the resulting embed user with a larger group. Also creates the shared entity folder using the name set in the value. Can be any alphanumeric value.

URL builder label	Embed entity
Required	No X
Example input(s)	Blobs R Us Blobby Outdoors Blob Mart
Example URL parameter	entity=Blobs+R+Us

entityFolderContentRole

Specifies the content role the embed user will be given to their shared entity folder.

URL builder label	Entity folder content role
Required	No X
Accepted values	VIEWER - Can see content in the shared folder, but cannot save content into it EDITOR - Can see and save content into the shared folder MANAGER - Can see and save content into the shared folder and manage other users' permissions
Example URL parameter	entityFolderContentRole=EDITOR

entityFolderLabel

Updates the embed user's associated entity folder label. Note: An entity must be provided in the generated URL for this parameter to have an affect.

URL builder label	Entity folder label
Required	No X
Accepted values	Blob Sales
Example URL parameter	entityFolderLabel=Blob+Sales

entityGroupLabel

Updates the embed user's associated entity group label. Note: An entity must be provided in the generated URL for this parameter to have an effect.

URL builder label	Entity group label
Required	No X
Accepted values	Blob Sales
Example URL parameter	entityGroupLabel=Blob+Sales

filterSearchParam

Specifies the filters to apply for the embedded content.

URL builder label	Filter search param
Required	No X
Example input(s)	f--order_items.status=closed
Example URL parameter	filterSearchParam=f--order_items.status%3D%257B%22values%22%253A%255B%22Complete%22%255D%252C%22appliedLabels%22%253A%257B%257D%257D

groups

An array of user group names that associate the resulting embed user with existing user groups in your Omni instance.

URL builder label	Groups
Required	No X
Example input(s)	["Blob Sales", "Blob Marketing"]
Example URL parameter	groups=%5B%22Blob+Sales%22%2C%22Blob+Marketing%22%5D

linkAccess

Controls which Omni dashboards can be linked to from the embedded dashboard.

URL builder label	Link access
Required	No X
Accepted values	__omni_link_access_open - All links on the embedded dashboard are permissed and shown <list_of_dashboard_ids> - Only permit specific dashboards to be shown Leave blank to restrict all links to other Omni dashboards. Note: Links to anything other than an Omni dashboard will be shwon regardless of the values specified in this parameter.
Example URL parameter	linkAccess=__omni_link_access_open

mode

Defines the type of access users will have to Omni in the iframe.

URL builder label	Mode
Required	No X
Accepted values	APPLICATION - Enables Create mode. Allows embed users to access the full content system and navigate through the Omni app in an iframe SINGLE_CONTENT - Only embeds an individual dashboard or workbook. No content navigation or app headers.
Example URL parameter	mode=APPLICATION

prefersDark

Controls whether the resulting embed session has a light or dark mode appearance.

URL builder label	Prefers dark
Required	No X
Accepted values	true false system
Example URL parameter	prefersDark=false

theme

Customizes the styles of the resulting embed session with a built-in Omni application.

URL builder label	Built-in theme
Required	No X
Accepted values	vibes dawn breeze blank
Example URL parameter	theme=vibes

userAttributes

Applies user attributes to the embed user.

URL builder label	User attributes
Required	No X
Example input(s)	{"country":"Townsville", "associated_ids":[9,10,11]}
Example URL parameter	userAttributes=%7B%22country%22%3A%22Townsville%22%2C%22associated_ids%22%3A%5B9%2C10%2C11%5D%7D
